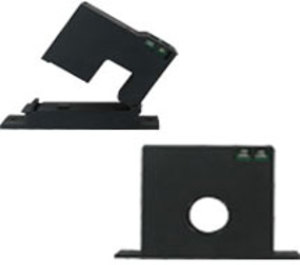

* product series image displayed

CCS-121050 | Dwyer Instruments | Power Monitoring & Protection

CURRENT SWITCH, SOLID CORE, WITH FIXED SET POINT @ 0.50, NORMALLY OPEN, RED LED.

Brand:Dwyer Instruments

MPN:CCS-121050

SKU:CCS-121050

List Price:

$61.00

Today's Price:

$31.72

product datasheet

installation instructions

Lead time of 4 days. Chat with Kele experts now

product specifications

Contact Form

SPST

Current Range

0 - 200 A

Trip Point Type

Fixed

Mount

Solid Core

product series specifications

Amperage Range: 0 to 200 A AC

Maximum Switch Rating:

For dry contact models: 0.3 A @ 135 VAC/DC; For non-dry contact models: 1 A @ 240 VAC

Power Requirements: None, self-powered

Temperature Limits: -22 to 158°F (-30 to 70°C)

Humidity Limits: 0 to 95% (non-condensing)

Isolation Voltage: 2000 V

Frequency: 40 to 400 Hz

Enclosure Rating: UL 94 V-O flammability rated, ABS plastic housing

Approvals: CE, cULus

product series features

Integral mounting flange for quick installation
Solid core or split core configurations
LED Indicator

more information & related documents

Series Description

The Dwyer CCS Current Switches are ideal for monitoring the operating status of fans, pumps, and motors. These self-powered switches can be hung or tied directly to cables or wires. For use on existing installations, split core models can be installed without disconnecting cables. LED indicators provide a visual confirmation that the current is flowing through the core. Both fixed and adjustable set points are available. The adjustable models utilize a potentiometer to easily adjust the set point.

Kele Description

CURR SW, SOLID COR, W/ FIX STPT @ 0.50, NO, RD LED

Manufacturer

Dwyer Instruments
