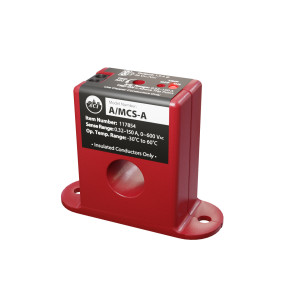

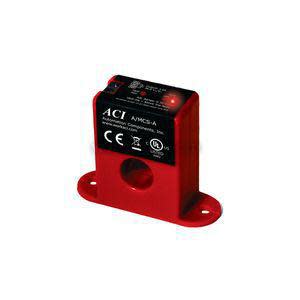

Solid Core Adjustable Current Switch Normally Open 150A
Brand:ACI
MPN:A/MCS-A
SKU:A/MCS-A
List Price:
$108.00
Today's Price:
$56.16
Log in for customized pricingproduct specifications
Connection
Terminals
Mount
Solid Core
Output Signal
Relay
Core Type
Solid
Set Point Type
Adj.
Current Range
0 - 105 A
Trip Point Type
Adjustable
Contact Form
SPST
product series specifications
Frequency: 50/60 Hz
Outputs:
A/MCS, A/MSCS 0.5 A continuous 36 VAC/VDC
A/MCS-A, A/MSCS-A 0.5 A continuos 36 VAC/VDC
Insulation Class: 600 VAC
Isolation Rating: 2,200 VAC
LED Indication:
Red = Above trip point
Green = Below trip point
Red = Above trip point
Green = Below trip point
Trip Point:
A/MCS Fixed <0.20A
A/MCS-A 0.32 - 150A
A/MSCS Fixed <0.55A
A/MSCS-A 0.70 - 150A
Range:
A/MCS 0.20 - 150A
A/MCS-A 0.32 - 150A
A/MSCS 0.55 - 150A
A/MSCS-A 0.70 - 150A
Operating Temperature: -22° to 140°F (-30° to 60°C)
Operating Humidity: 0 to 95% RH, (non-condensing)
Enclosure Rating: NEMA 1
Mounting: foot
Dimensions:
A/MCS, A/MCS-A 2.50" x 1.99 x 0.95" ( 6.35 x 4.97 x 2.41 cm)
A/MSCS, A/MSCS-A 2.65" x 2.35" x 0.95" (6.73 x 5.08 x 2.43 cm)
Window Size:
A/MCS, A/MCS-A 0.55" (1.39 cm) dia., up to 1 AWG cables
A/MSCS, A/MSCS-A 0.53" (1.34 cm) dia., up to 1 AWG cables
Weight: 0.21 lb (0.1 Kg)
Approvals: UL File #E309723, CE, RoHs
Warranty: 5 years
product series features
- Go / no-go status switch
- Rated up to 150A
- 5-year warranty
- UL94V-0 enclosure rating
- LED indication (adjustable models)
- Small size
more information & related documents
Series Description
The A/MCS, A/MSCS, A/MCS-A, A/MSCS-A ACI mini current operated switches feature a normally-open, solid state contact that is non-polarity sensitive. The current switches can be used to switch both AC and DC circuits up to 36 volts. Ideal for building automation systems, BAS, the adjustable switches also include two status LED indicators. These indicate one of three states: tripped on, current present but below trip point, and current off or below the low end of the adjustable trip point range. The A/MCS and A/MSCS current switches should be used in applications in which a go/ no-go current status switch is required. A current status switch can be used to monitor fan and pump status, motors, compressors, and any other electrical equipment for on or off status. The A/MCS-A and A/MSCS-A adjustable current switches should be used in applications such as monitoring over and under loads, changes in the normal operating current or equipment status.
