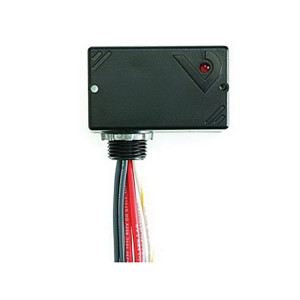

H120 | Veris | Power Monitoring & Protection
Relay, Status, Field Mount, Normally Open
Brand:Veris
MPN:H120
SKU:H120
product specifications
Coil Voltage
24 VAC/VDC
Connection
Wire Leads
Type
INTERNAL
Output Signal
Relay
Core Type
Enclosed
Set Point Type
Adj.
Current Range
0 - 20 A
Trip Point Type
Fixed
Contact Form
SPST
product series specifications
Sensor Power: Induced from monitored conductor
Insulation Class: 600VAC RMS
Temperature Range: 5 to 140°F (-15 to 60°C)
Humidity Range: 10 to 90% RH, non-condensing
Frequency: 50/60 Hz
Terminal Block Maximum Wire Size: 14 AWG
Terminal Block Torque (nominal): 4 in-lbs. (0.45 N-m)
Approvals: UL 508 open device listing
product series features
- On/off status sensors and command relay for direct-drive fans, pumps, and process motors
- Reduce the number of installed components... saves time and space
- On/off status and command relay in a single labor and space saving device
- Cost-effectively monitor start/stop, unit vents, fan coils, exhaust fans, and other loads where belt loss is not a concern
- H740 and H940 feature a SPDT command relay
- Space saving dual function sensor for Start/Stop/Status
- No calibration required
- One device to install... reduces installation charges
- Easier to install than differential pressure switches... no additional wiring needed
- 100% solid state...no moving parts to fail
- Removable mounting bracket for installation flexibility
- 5-year limited warranty
more information & related documents
Series Description
The Hawkeye Relay Combination Series combines an on/off status sensor and command relays in one package, saving the labor, wire runs, and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.
Kele Description
RELAY, STATUS, FIELD MOUNT, NO
Manufacturer
Veris
H120 and H120NC Installation
