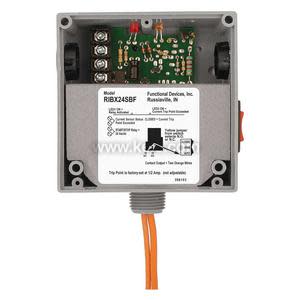

Grey plastic housing with transparent side showing circuit board and printed specifications

RIBX24SBF | Functional Devices | Power Monitoring & Protection

Enclosed 20 Amp Relay/Current Switch Combination + Override Switch

Brand:Functional Devices

MPN:RIBX24SBF

SKU:RIBX24SBF

List Price:

$245.00

Today's Price:

$127.40

product datasheet

catalog page

product specifications

Core Type

Enclosed

Set Point Type

Adj.

Type

Track Mount

Connection

Wire Leads

Contact Form

Solid State

Coil Voltage

30 VAC,30 VDC

Current Range

0.5 - 20 A

Trip Point Type

Fixed

Output Signal

Relay

Mount

Surface

product series specifications

Frequency: 50/60 Hz

Output: 0-5 VDC or 0-10 VDC, proportional to current sensing range

Output Impedance: 30kΩ minimum

LED Indication: LED on = relay activated

Relay:

Life Rating: 10 million cycles minimum mechanical

Pull In Voltage: 10-30 VAC/VDC models 9 VAC, 10 VDC; 24 VAC/VDC models 18 VAC, 22 VDC

Drop Out Voltage: 10-30 VAC/VDC models 2.1 VAC, 2.8 VDC; 24 VAC/VDC models 3 VAC, 3.8 VDC

Accuracy: ±1% FS

Lead Wires: 16" (40.6 cm)

Operating Temperature: -30° to 140°F (-34° to 60°C)

Operating Humidity: 5% to 95% (non-condensing)

Dimensions: 4"H x 4"W x 1.8"D (10.2 x 10.2 x 4.6 cm), NEMA 1 th 1/2" NPT

Weight: Approximately 1 lb (0.45 kg)

Approvals: UL and cUL listed, file #E68805 (UL 916) and #S7312 (UL 864)

RoHS Statement: Yes

Warranty: 1 year

product series features

Cost-effective analog current sensing with a control relay
Self-contained housing with high- and low-voltage separation
LED indication of relay
Optional relay contact override switch
Plenum-rated housing
UL and ULC listed for UL 916 Energy Management and UL 864 Fire

more information & related documents

Series Description

The Relay In a Box RIBX-V Series from Functional Devices provides a unique and cost-effective solution to on/off motor control and analog current sensing. Combined in a single, convenient junction box with high- and low-voltage separation are a control relay and a current sensing transducer that outputs 0-5 VDC or 0-10 VDC. A three-position closed/open/auto switch is available to override the output of the relay. This versatile product allows both control and analog current sensing of electrical loads by a building automation system, all in a self-contained, easy-to-install housing.

Kele Description

ENCLOSED RELAY 20AMP SPST 24VAC/DC INTERNAL FIXED AC SENSOR WITH OVERRIDE SWITCH

Manufacturer

Functional Devices
