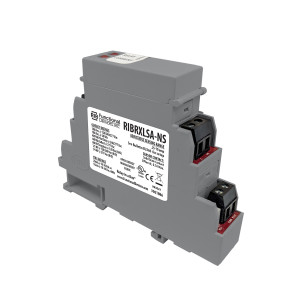

RIBRXLSA-NS | Functional Devices | Power Monitoring & Protection
CURRENT SWITCH + RELAY, SPST-NO, OVERRIDE SW, 10-30 VAC/VDC, ADJ, 0.25-10A, LED, NO SOCKET, DIN MNT
Brand:Functional Devices
MPN:RIBRXLSA-NS
SKU:RIBRXLSA-NS
List Price:
$179.00
Today's Price:
$93.08
Log in for customized pricingproduct specifications
Coil Voltage
12 VAC, 12 VDC, 24 VAC, 24 VDC
Type
DIN MOUNT
Current Range
0.25 - 10 A
Trip Point Type
Adjustable
Contact Form
SPST
product series specifications
Number of relays and contact type: SPDT and DPDT with continuous duty coil
Coil Voltage: 10-30 VAC/VDC or 24 VAC/VDC
Contact Rating: 10A
Relay Status: LED on = Activated
Terminal Strip: 14-22 AWG wire
Approvals: UL Listed, UL916, C-UL, CE, RoHS
Warranty: 5 years
product series features
- Suitable for a wide variety of panel applications
- Relay status indicator via LED
- Slim, trim and compact
- Multi-coil voltages eliminate need to stock multiple equivalent relays
- Models available with override switch
- Current sensor models available with adjustable threshold
- Made in the USA
more information & related documents
Series Description
Are you having difficulty sourcing relays and compatible sockets separately? Announcing the new RIBR-NS Series, a new prepackaged 'No Socket' DIN Rail mountable RIB® control relay solution for your next panel project. These new models include a non-removable enclosed relay that is DIN Rail mountable with no socket required. They offer the same great quality as all enclosed relay products from Functional Devices. This new 'No Socket' RIB® relay series is a great value and a perfect choice for your panel design projects.
Kele Description
CURRENT SWITCH + RELAY, SPST-NO, OVERRIDE SW, 10-30 VAC/VDC, ADJ, 0.25-10A, LED, NO SOCKET, DIN MNT
Manufacturer
Functional Devices
RIBR24D, RIBR24D-NS Installation Guide
