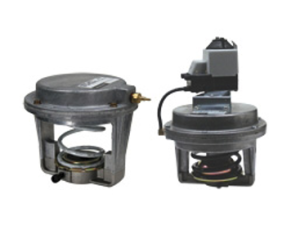

MP953C1000 | Honeywell | Pneumatics & Fittings

Action:

V-3000: Spring return up

MP800: Field reversible action

Connections:

Barb for 1/4" or 1/8" OD poly tubing; 1/8" NPT for brass fitting

Positioner:

V-3000: Order separately V-9502-75 (and spring kit V-9502-6801)

MP800: Order separately V-9502-95 (and mounting kit MP8000-6002)

Diaphragm:

V-3000: 4.5" (11.4 cm) diameter, 8 sq. in. (20 sq. cm) effective area

MP800: 8.7" (22.1 cm) diameter, 25 sq. in. (64 sq. cm) effective area

Spring Range:

V-3000: Depends on separately ordered spring VG7000-100x

MP82xC001: 3-7 psi

MP82xD001: 4-8 psi

MP82xE001: 9-13 psi

Stroke:

V-3000: 5/16" to 3/4" (0.8 to 1.9 cm) depends on separately ordered spring

MP821: 5/16" (0.8 cm)

MP822: 1/2" (1.3 cm)

MP823: 3/4" (1.9 cm)

Operating Temperature:

-20° to 150°F (-29° to 66°C)

Media Temperature Range:

Maximum fluid temperature 338°F (170°C), 100 psig (103 kPa) steam

Maximum Pressure:

25 psig (172 kPa)

Dimensions:

V-3000: 3.5"H x 4.1"DIA (8.8 x 10.5 cm)

MP800: 10.7"H x 8.7"DIA (27.2 x 22.1 cm)

Weight:

V-3000: 0.9 lb (0.41 kg)

MP800: 14.0 lb (6.4 kg)

Mounting:

V-3000: Set screw to VG-7000 valve bonnet

MP800: Threaded nut to VG-7000 valve bonnet

Warranty:1 year
