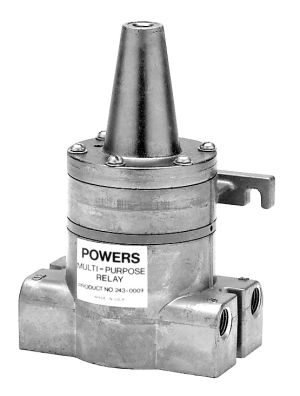

Industrial relay unit with cone-shaped top and cross base with side ports.

243-0009 | Siemens Industry | Pneumatics & Fittings

RL243 MP RELAY INDUSTRIAL DUTY

Brand:Siemens Industry

MPN:243-0009

SKU:243-0009

List Price:

$942.00

Today's Price:

$489.84

product datasheet

installation instructions

catalog page

Lead time of 15 days. Chat with Kele experts now

product specifications

Type

Relay

product series specifications

Instrument Air Supply:

Normal: 0-25 psi (0 to 172 kPa)

Maximum: 30 psi (207 kPa)

Temperature:

Ambient: 40 to 120°F (4.4 to 49°C)

Storage: -20 to 120°F (-29 to 49°C)

Adjustments:Spring S1: 0 to 25 psi (0 to 172 kPa)

Hysteresis:

Within 0.25 psi (1.7 kPa)

Relief Valve Differential: Within 1.0 psi (6.89 kPa)

Accessories:

Panel Mounting: For flush mounting, with adjustable knob, dial plate and mounting bracket

Surface Bracket: For exposed surface mounting (Use with Panel Mounting Kit)

Dimensions:4 3/8"H x 2 1/2"W x 3"D (111.13 x 81.6 x 76.2 cm)

product series features

Integral brackets
Single spring adjustment
Adaptable for flush panel mounting

more information & related documents

Series Description

The Siemens/Powers 243-0009 Series Multi-Purpose Relay is a pneumatic auxiliary device designed to provide a variety of pneumatic control functions for the typical control system. Applications include direct and reverse acting amplifying, signal advancing, minimum pressure relay, and lower pressure transfer. The relay operated on a force balance principal and is provided with a Powers two-valve design to assure stability and prevent unnecessary air consumption. Internal relief assembly prevents signal lock-up and assures fail-safe operation.

Kele Description

PNEU/MULTI-PURPOSE RELAY

Manufacturer

Siemens Industry
