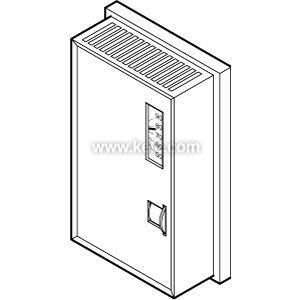

TK-1001 | Schneider Electric Buildings | Pneumatics & Fittings

Connections:

TK-1000/5000: 5/32" spring-reinforced plastic tubing

2200: 3/16" spring-reinforced plastic tubing

Number of Pipes: 1, 2, or 3 with manual override

Sensor Element: Bimetal

Mounting: Wall

Setpoint Range: 55° to 85°F (13° to 29°C)

Setpoints: Single, Dual (TK1201, TK1281 only)

Throttling Range:

TK1000/5000: Adjustable, 2° to 10°F (1° to 5°C), factory set at 4°F (2°C)

2200: Adjustable, 2° to 12°F (1° to 6°C), factory set at 3°F (2°C)

Remote Bulb: No

Air Consumption:

TK1000: 13.8 scfm (3.8 mL/s)

TKR-5x01: 41.5 scfm (11.3 mL/s)

2212: 15.6 scfm (4.3 mL/s)

2211: 29.4 scfm (8.0 mL/s)

Operating Temperature: 40° to 150°F (4° to 65°C)

Supply Air Pressure:

TK1000/5000: 15 or 20 psig (103 or 138 kPa), 30 psig maximum

2200: 20 psig (138 kPa), 30 psig maximum

Maximum Operating Pressure: 30 psi (207 kPa)

Color:

TK1000/5000: Beige; plastic cover has setpoint and thermometer, blank cover also provided

2200: White; plastic cover has setpoint and thermometer, blank cover also provided

Dimensions:

TK1000/5000: 4.4"H x 2.8"W x 1.6"D (11.1 x 7.0 x 4.1 cm)

2200: 2.0"H x 2.0"W x 1.3"D (5.2 x 5.2 x 3.2 cm)

Weight: 0.4 lb (0.2 kg)

Warranty: 2 years
