V11HGA-100 | Johnson Controls | Pneumatics & Fittings

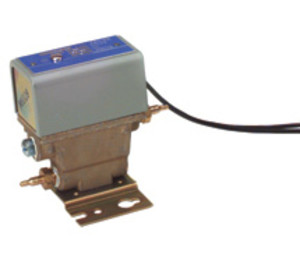

3-Way Solenoid Air Valve, 2 Position, 1/8 in Connection, 24 VAC, 50/60 Hz
Brand:Johnson Controls
MPN:V11HGA-100
SKU:V11HGA-100
List Price:
$643.00
Today's Price:
$334.36
Log in for customized pricingproduct specifications
Connection
Barbed
Pressure Range
0 - 50 PSIG
Connection Size
1/4 in
product series specifications
Supply Voltage: See ordering information
Supply Watts: AC models 6W, DC model 9W
Connections: 1/8" NPT normally open port; barbs for 1/4" OD tubing on common and normally closed port
Override: Separately ordered key, Y99AA-4
Air Capacity: 2592 scim, 1.5 scfm (42 lpm) @ 15 psig (105 kPa) supply
Operating Temperature: AC models 32° to 140°F (0° to 60°C), DC models 32° to 104°F (0° to 40°C)
Pressure Range: 0 to 20 psig (0 to 138 kPa)
Wiring: 18" leads, 18 AWG, 7/8" knockout for 1/2" conduit connector
Weight: 0.9 lb (0.41 Kg)
Approvals: UL file MH3536, CSA
Warranty: 1 year
product series features
- Three-port connection C, N.O., N.C.
- Two-position operation
- Positive air seal
- Manual operation for testing and checkout of some models
- Compact and lightweight
- Mounts in any position
- High capacity
more information & related documents
Series Description
The V11 Series three-way solenoid air valves have a capacity of 2592 scim and are proven performers in building automation systems, BAS. Each air solenoid valve has three connections: a normally open (N.O.) port with 1/8 in FNPT connection, and normally closed (N.C.) and common (COM) ports with barbed fittings for 1/4 OD tubing. The posts in the die cast aluminum 3 way air valve solenoid body have No. 60 mesh (217 micron openings) monel screens to prevent foreign material from entering the valve ports.
Kele Description
3-Way Solenoid Air Valve, 2 Position, 1/8 in Connection, 24 VAC, 50/60 Hz
Manufacturer
Johnson Controls
Related Documents
V11 Technical Bulletin
