MK-7121 | Schneider Electric Buildings | Pneumatics & Fittings

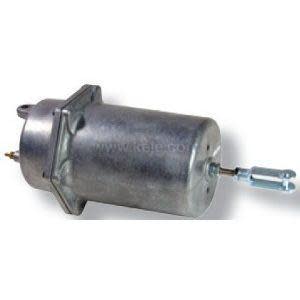

Act (MK-7121): Pneu, 2Pos/Prop, 8-13 PSIG, SR, Air NPT, Linear, N4, Erie

Brand:Schneider Electric Buildings

MPN:MK-7121

SKU:MK-7121

List Price:

$1,527.00

Today's Price:

$794.04

Lead time of > 15 days. Chat with Kele experts now

product datasheet

catalog page

product specifications

Connection

NPT

Pressure Range

8 - 13 PSIG

Connection Size

1/8 in

product series specifications

Connections: 1/8" NPT

Diaphragm: Beaded, molded neoprene

Operating Temperature: -20° to 160°F (-29° to 71°C)

Mounting: Any position

Maximum Pressure Rating: 30 psig (207 kPa)

Dimensions:

MK-3000: 12.0"H x 5.9"W x 5.5"L (30.5 x 14.9 x 14.0 cm)

MK-7100: 17.6"H x 7.8"W x 7.6"L (44.8 x 19.7 x 19.4 cm)

Weight:

MK-3000: 5.0 lb (2.2 kg) to 5.5 lb (2.5 kg)

MK-7100: 15.0 lb (6.8 kg) to 15.5 lb (7.1 kg)

Warranty: 1 year

more information & related documents

Series Description

The Schneider Electric MK-3000, MK-7100 Series pneumatic actuators provide damper control for 3-8, 5-10, and 8-13 psig (21-55, 34-69, and 55-90 kPa) pressure ranges. The MK-3000 has a 3.5 in (8.9 cm) nominal stroke and is adjustable 2 in to 4 in (5.1 to 10.2 cm) for smaller applications such as zone dampers and VAV boxes. The MK-7100 has a 4.5 in (11.4 cm) nominal stroke and is adjustable 4 in to 5 in (10.2 to 12.7 cm) for larger applications such as air handler dampers.

Kele Description

PNEU DPR ACT 20 SQ IN 8-13#

Manufacturer

Schneider Electric Buildings
