MK-3111 | Schneider Electric Buildings | Pneumatics & Fittings

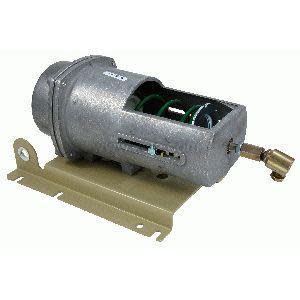

Act (MK-3111): Pneu, 2Pos/Prop, 5-10 PSIG, SR, Air NPT, Linear, N1, Erie
Brand:Schneider Electric Buildings
MPN:MK-3111
SKU:MK-3111
product specifications
Connection
NPT
Pressure Range
5 - 10 PSIG
Connection Size
1/8 in
product series specifications
- Connections:
- 1/8" NPT
- Diaphragm:
- Beaded, molded neoprene
- Operating Temperature:
- -20° to 160‚Ñâ (-29° to 71‚ÑÉ)
- Mounting:
- Any position
- Maximum Pressure Rating:
- 30 psig (207 kPa)
- Dimensions:
- :
- MK-3000 12.0"H x 5.9"W x 5.5"L (30.5 x 14.9 x 14.0 cm)
- :
- MK-7100 17.6"H x 7.8"W x 7.6"L (44.8 x 19.7 x 19.4 cm)
- Weight:
- :
- MK-3000 5.0 lb (2.2 kg) to 5.5 lb (2.5 kg)
- :
- MK-7100 15.0 lb (6.8 kg) to 15.5 lb (7.1 kg)
- Warranty:
- 1 year
more information & related documents
Series Description
The Schneider Electric MK-3000, MK-7100 Series pneumatic actuators provide damper control for 3-8, 5-10, and 8-13 psig (21-55, 34-69, and 55-90 kPa) pressure ranges. The MK-3000 has a 3.5 in (8.9 cm) nominal stroke and is adjustable 2 in to 4 in (5.1 to 10.2 cm) for smaller applications such as zone dampers and VAV boxes. The MK-7100 has a 4.5 in (11.4 cm) nominal stroke and is adjustable 4 in to 5 in (10.2 to 12.7 cm) for larger applications such as air handler dampers.
Kele Description
PNEU DPR ACT 5-10SPR 21LB/IN
Manufacturer
Schneider Electric Buildings
Related Documents
MK-3000 Guide x
