D-3153-5130 | Johnson Controls | Pneumatics & Fittings
PNEU ACT, 8-13PSIG
Brand:Johnson Controls
MPN:D-3153-5130
SKU:D-3153-5130
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Connection
Barbed
Pressure Range
8 - 13 PSIG
Connection Size
1/8 in
Stroke
3 in
product series specifications
Connections: Barb for 1/4" OD poly tubing
Diaphragm: Synthetic elastomer
Operating Temperature: -20° to 150°F (-29° to 66°C)
Maximum Pressure Rating: 25 psig (172 kPa)
Warranty: 1 year
more information & related documents
Series Description

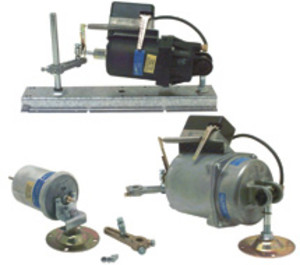

The Johnson Controls D-3000 Series pneumatic damper actuators provide a wide range of forces to handle applications from VAV control dampers to inlet vanes. The D-3062 and D-3153 have models that are UL/ULC listed for smoke damper applications.The D-4000 Series actuators are constructed of a glass reinforced polymer with synthetic elastomer diaphragms.They include barb fittings for 5/32 in or 1/4 in OD poly tubing.
Kele Description
PNEU ACT, 8-13PSIG
Manufacturer
Johnson Controls
D-3062 Product Bullletin
