1SNA115657R2500 | TE Connectivity | Panel Fabrication

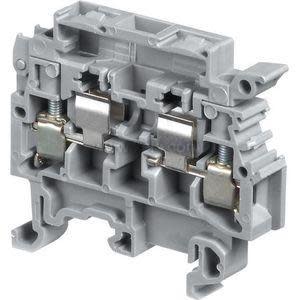

Fuse Holder 5X20mm

Brand:TE Connectivity

MPN:1SNA115657R2500

SKU:M4/8SF

List Price:

$-.--

Today's Price:

$-.--

product datasheet

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Mount

DIN rail

Type

Holder

Current Rating

6.3 A

Voltage Rating

630 V

Primary Color

Gray

Related Accessory

Fuse Holder

Accessory Type

Screw Clamp

product series specifications

Rated Voltage: M4/6: 300 VAC/VDC max., M4/8: 600 VAC/VDC max., M10/16: 600 VAC/VDC max.

Rated Current: M4/6: 20 A, M4/8: 6.3 A,M10/16: 10 A

Rated Wire Size: M4/6: 22-10 AWG, M4/8: (leave blank), M10/16: 18-8 AWG

Fuse Size: M10/16SFL: GF Series 0.25" x 1.25" (0.63 x 3.17 cm), M4/8: K235 Series 0.197" x 0.787" (0.5 x 2.0 cm)

Approvals: UL File #E60645; CSA, CE

Warranty: 1 year

product series features

Wire secured by ribbed compression clamp
Universal DIN rail mounting
Unique disconnect design

more information & related documents

Series Description

Model M4/8SF, M4/8SFL, and M10/16SFL fuse holders provide a safe method for protecting or isolating a circuit. Once installed, the fuse is enclosed and prohibits the installer from coming in contact with a live circuit. The fuse can be disengaged by pulling up on the fuseholder. Optional blown fuse indicators are available. Model M4/6 SNBT1 is a non-fusible disconnect switch that provides a safe method for isolating a circuit.

Kele Description

FUSE HOLDER 5X20MM

Manufacturer

TE Connectivity
