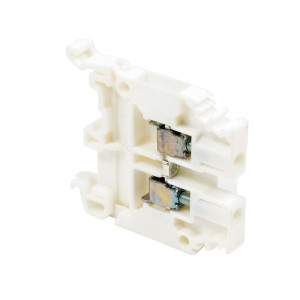

M4/6-WH-PKG50 | TE Connectivity | Panel Fabrication
DIN TERMINAL 6MM(.238IN) - WHITE (PKG OF 50)
Brand:TE Connectivity
MPN:M4/6-WH-PKG50
SKU:M4/6-WH-PKG50
List Price:
$158.00
Today's Price:
$82.16
Log in for customized pricingproduct specifications
Mount
DIN rail
Carton Quantity
50
Block Function
Feed-through
Terminal Type
Screw Clamp
Rated Cross Section
4 mm²
Current Rating
32 A
Voltage Rating
600 V
Primary Color
White
Terminal Block Type
Feed-Through
product series specifications
Rated Voltage: 600 VAC/VDC max.
Rated Current: M4/6: 32A UL, M6/8: 41A UL
Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG
Approvals: UL File #E60645; CSA, CE, RoHs
Warranty: 1 year
product series features
- Wire secured by ribbed compression clamp
- Universal DIN rail mounting
- Reduced installation time
- Block removable without displacing adjacent blocks
- Various marking options
more information & related documents
Series Description
The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.
Kele Description
DIN TERMINAL 6MM(.238IN) - WHITE (PKG OF 50)
Manufacturer
TE Connectivity
