1SNA164581R1300 | TE Connectivity | Panel Fabrication

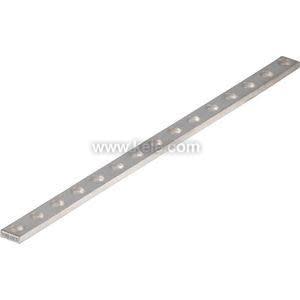

Jumper Bar M6/8 20 Pole

Brand:TE Connectivity

MPN:1SNA164581R1300

SKU:BJS8

List Price:

$24.41

Today's Price:

$12.69

36 in stock
SHIPS TODAY!

product specifications

Mount

DIN rail

Type

Jumper Bar

Block Function

Cross-connector

Current Rating

32 A

Related Accessory

Jumper Bar

Number of Poles

20

Accessory Type

Cross-connector

product series specifications

Rated Voltage: 600 VAC/VDC max.

Rated Current: M4/6: 32A UL, M6/8: 41A UL

Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG

Approvals: UL File #E60645; CSA, CE, RoHs

Warranty: 1 year

product series features

  • Wire secured by ribbed compression clamp
  • Universal DIN rail mounting
  • Reduced installation time
  • Block removable without displacing adjacent blocks
  • Various marking options

more information & related documents

Series Description

The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.

Kele Description

JUMPER BAR M6/8 20 POLE

Manufacturer

TE Connectivity
