HW-U10 | IDEC | Panel Fabrication

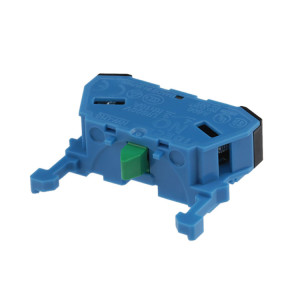

CONT BLOCK 1POLE, 10A,600VAC

Brand:IDEC

MPN:HW-U10

SKU:HW-U10

List Price:

$10.01

Today's Price:

$5.20

91 in stock

product specifications

Connection

No Contact

Mount

DIN rail

Type

Block

Block Function

Feed -through

Terminal Type

Screw connection

Rated Cross Section

4 mm²

Current Rating

10 A

Voltage Rating

600 V

Terminal Block Type

Contact

Number of Poles

1

product series specifications

Contact Rating: 10A, 600 VAC/VDC max.; 5 mA, 3 VAC/VDC minimum

Contact Resistance: 50 mO maximum (initial value)

Contact Material: Silver

Electrical Life: 500,000 minimum operations

Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13, IP65

Applicable Wire Size: Minimum 1 x 22 AWG, Maximum 2 x 14 AWG or 1 x 12 AWG

Mechanical Life: 500,000 minimum operations

Mounting: 0.878" (2.23 cm) hole

Panel Thickness: Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)

Approvals: UL File #E68961; CSA File #LR48366, CE, RoHS

Warranty: 1 year

product series features

  • Rugged, oil-tight construction
  • Snap-fit blocks with N.O. and N.C. contacts
  • Self-cleaning silver contacts
  • Durable nylon operator base
  • Optional key or lever styles available

more information & related documents

Series Description

The IDEC ASW Series selector switches are general purpose selector switches for pilot duty control of electrical equipment, such as fans, pumps, compressors, or control circuits. Each selector switch has been proven to perform in high-demand applications for HVAC and building automation systems. Rely on these switches for fan control, pump control and compressor control. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.

Kele Description

CONT BLOCK 1POLE, 10A,600VAC

Manufacturer

IDEC
