UT4 | | Panel Fabrication

DIN TERMINAL 6MM (.238IN) GREY

Brand:

MPN:UT4

SKU:UT4

List Price:

$-.--

Today's Price:

$-.--

Lead time of 0 days. Chat with Kele experts now

product specifications

Connection

Screw Connection

Mount

DIN rail

Primary Color

Green-Yellow

Terminal Block Type

Ground

product series specifications

Rated Voltage: 600 VAC/VDC max.

Rated Current: M4/6: 32A UL, M6/8: 41A UL

Rated Wire Size: M4/6: 22-10 AWG, M6/8: 22-8 AWG

Approvals: UL File #E60645; CSA, CE, RoHs

Warranty: 1 year

product series features

  • Wire secured by ribbed compression clamp
  • Universal DIN rail mounting
  • Reduced installation time
  • Block removable without displacing adjacent blocks
  • Various marking options

more information & related documents

Series Description

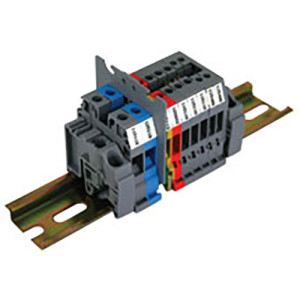

The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.

Kele Description

DIN TERMINAL 6MM (.238IN) GREY

Manufacturer
