PDK-L | Kele | Panel Fabrication
PANEL DISCONNECT SWITCH ASSEMBLY W/ GREEN LIGHT
Brand:Kele
MPN:PDK-L
SKU:PDK-L
product specifications
Type
Panel
Current Rating
15 A
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage: 120 VAC
Current Rating:Non-GFI: 20A @ 120 VAC, GFI: 15A @ 120 VAC
Switch: 20A @120 VAC
Indicator: 25 mA @120 VAC
Wire Type: 12 AWG (UL) MTW 600V, 13 AWG (UL) MTW 600V
Fuse Size: 250V (0-15A ordered separately)
Dimensions:
PDK, PDK-F, PRK, 51012218, PRK-GFI: 4.75" H x 2.75" W (12.07 x 6.99 cm)
PRK-S, PRK-FS, PRK-FLS: 4.50" H x 4.50" W (11.43 x 11.43 cm)
Warranty: 1 year
product series features
- Prewired
- Handy box included
- Cost effective
- Always hot receptacle
- Panel disconnect switch
- Pilot light option to indicate closed switch
more information & related documents
Series Description

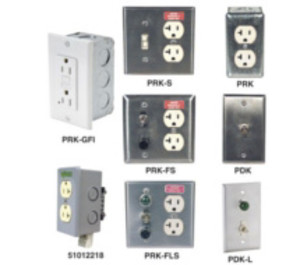

These PRK Series and PDK Series Panel Receptacle and Disconnect Switch Assemblies combine convenience and function for HVAC applications and building automation systems, BAS. Models PRK-S, PRK-FS, and PRK-FLS provide constant power to the receptacle and can be used to power down the rest of the panel with the toggle switch. Models PRK-FS and PRK-FLS include a fuse holder for circuit protection (fuse sold separately). Models PDK and PRK use the standard single-gang configuration and the Models PRK-FLS, PRK-FS, and PRK-S use the double-gang configuration. The 51012218 offers DIN rail mounting and convenient push-on wiring. If a project requires multiple panels configured in the same way, consider using the experienced panel technicians at Kele's Custom Panel Shop. They will assemble the panels according to specifications and drawings.
Kele Description
PANEL DISCONNECT SWITCH ASSEMBLY W/ GREEN LIGHT
Manufacturer
Kele
