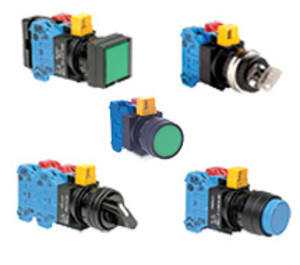

* product series image displayed

HW1K-3JA21N1 | IDEC | Panel Fabrication

SELECTOR SWITCH 22 MM KEY 3 WAY 2 NO 1 NC BLACK

Brand:IDEC

MPN:HW1K-3JA21N1

SKU:HW1K-3JA21N1

List Price:

$204.28

Today's Price:

$106.23

(login for better pricing)

Lead time of 15 days. Chat with Kele experts now

catalog page

product specifications

Type

Keyed

Color

Black

Diameter

22 mm

Function

3-Way

Illumination

Non-Illuminated

Contact Blocks

2NO-1NC

product series specifications

Contact Rating: 10A, 600 VAC/VDC max.

Contact Resistance: 50 mO maximum (initial value)

Contact Material: Silver

Electrical Life: 500k minimum operations

Protection Rating: NEMA 1, 4, 4X

Applicable Wire Size:

Minimum: 1 x 22 AWG

Maximum: 2 x 14 AWG or 1 x 12 AWG

Operating Temperature: -13° to 122°F (-25° to 50°C)

Approvals: UL File #E68961; CSA File #LR92374, CE

Warranty: 1 year

product series features

Locking lever removable contact blocks
Non-illuminated or LED illumination
Self-cleaning rolling action contacts
IP65 protection

more information & related documents

Series Description

The IDEC HW Series are IEC style devices that feature tamperproof mounting and construction, modular stackable contact blocks with IP20 fingersafe screw terminals, and pure silver contacts with a self cleaning action. Models include illuminated and non-illuminated pushbuttons in both round and square flush and extended styles.

Kele Description

SELECTOR SWITCH 22 MM KEY 3 WAY 2 NO 1 NC BLACK

Manufacturer

IDEC
