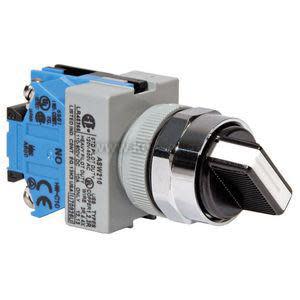

ASW320 | IDEC | Panel Fabrication
Selector Switch 3 Pos 2 Normally Open
Brand:IDEC
MPN:ASW320
SKU:ASW320
product specifications
Type
Knob
Color
Black
Diameter
22 mm
Function
Maintained
Illumination
Non-Illuminated
Contact Blocks
2NO
product series specifications
Contact Rating: 10A, 600 VAC/VDC max.; 5 mA, 3 VAC/VDC minimum
Contact Resistance: 50 mO maximum (initial value)
Contact Material: Silver
Electrical Life: 500,000 minimum operations
Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13, IP65
Applicable Wire Size: Minimum 1 x 22 AWG, Maximum 2 x 14 AWG or 1 x 12 AWG
Mechanical Life: 500,000 minimum operations
Mounting: 0.878" (2.23 cm) hole
Panel Thickness: Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)
Approvals: UL File #E68961; CSA File #LR48366, CE, RoHS
Warranty: 1 year
product series features
- Rugged, oil-tight construction
- Snap-fit blocks with N.O. and N.C. contacts
- Self-cleaning silver contacts
- Durable nylon operator base
- Optional key or lever styles available
more information & related documents
Series Description
The IDEC ASW Series selector switches are general purpose selector switches for pilot duty control of electrical equipment, such as fans, pumps, compressors, or control circuits. Each selector switch has been proven to perform in high-demand applications for HVAC and building automation systems. Rely on these switches for fan control, pump control and compressor control. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.
Kele Description
SELECTOR SWITCH 3 POS 2NO
Manufacturer
IDEC
Related Documents
ASW series installation manual
