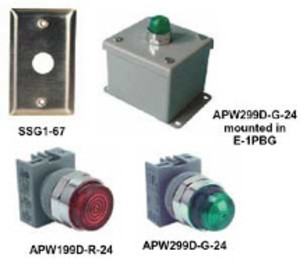

* product series image displayed

ALW29911D-R-24V | IDEC | Panel Fabrication

PUSH BUTTON LED EXT 24V RED 1NO1NC

Brand:IDEC

MPN:ALW29911D-R-24V

SKU:ALW29911D-R-24V

List Price:

$124.00

Today's Price:

$64.48

catalog page

10 in stock

product specifications

Type

Momentary

Color

Red

Diameter

22 mm

Function

Round Extended

Illumination

Illuminated

Lamp Type

LED

Contact Blocks

1NO-1NC

product series specifications

Materials Of Construction:

Lens: Acrylic

Base: Nylon

Bezel: Chrome-plated die-cast zinc

Terminals: #6-40 (M3.5) screws

Applicable Wire Size:

Minimum: 1 x 22 AWG

Maximum: 2 x 14 AWG or 1 x 12 AWG

Mounting: 0.86" (2.2 cm) hole

Panel Thickness: Panel thickness adjustment ring 0.04" to 0.24" (0.10 to 0.61 cm)

Lamps: T3-1/4 miniature bayonet base

LED: 6 VDC, 52 mA; 12 VAC/VDC, 26 mA; 24 VAC/VDC,13 mA; 120 VAC, 8 mA; 1,000,000 hrs average life

Incandescent: 6.3V, 1W; 12V, 1W; 24V, 1W; 3000 hrs average life

Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13

Approvals: UL File #E65961; CSA File #LR48366, RoHs, CE

Warranty: 1 year

product series features

Rugged, oil-tight construction
Bezel-threaded lock ring for easy panel installation
Incandescent or LED lamps
Small size
Excellent visibility
Multiple voltage input ranges

more information & related documents

Series Description

The APW Series IDEC pilot lights include replaceable incandescent and LED pilot lights. These lights can be mounted on control panels to provide immediate visual status of mechanical equipment such as fans, pumps, compressors, or control circuits on HVAC applications and building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.

Kele Description

PUSH BUTTON LED EXT 24V RED 1NO1NC

Manufacturer

IDEC
