MPEP4-10R | ABB | Panel Fabrication

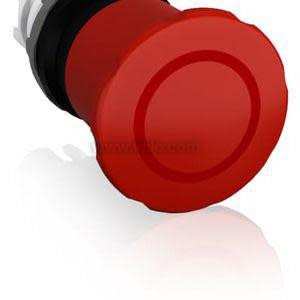

Modular Emergency Stop - Pull release - Mushroom 40mm - Red - Non-illuminated - No Contact Block
Brand:ABB
MPN:MPEP4-10R
SKU:MPEP4-10R
List Price:
$83.65
Today's Price:
$43.50
Log in for customized pricingproduct specifications
Type
Pull Release
Color
Red
Diameter
40 mm
Function
Emergency Stop
Illumination
Non-Illuminated
product series specifications
Contact Rating: AC: 120V, 6A; 240V, 3A; 480V, 1.5A; 600V, 1.2A
DC: 120V,0.55A; 240V, 0.27A; 480V, 0.1A; 600V, 0.1A
Rated Insulation Voltage: 690V
Mechanical Life: 10 million operations (contact block)
Terminals: #14-20 AWG
Contact Material: Silver
Mounting: 0.874" (2.25 cm) hole
Operating Temperature: -13° to 122°F (-25° to 50°C)
Panel Thickness: 0.059" to 0.236" (0.15 to 0.6 cm)
Protection Rating: NEMA type 1, 3R, 4, 4X, 12, 13
Approvals: UL File #E76003; CSA File #LR19700
Warranty: 1 year
product series features
- 22.5 mm size
- Quick release contact blocks
- Momentary and Maintained models
more information & related documents
Series Description
The ABB MP1 and MPM1 series push button switches are for munual control of fans, pumps, compressors or control ciruits. These devices use the IEC style of buttons, plus offer economical pricing. When a project requires multiple panels configured in the same way let Kele's experienced panel technicians do it for you. Use Kele's Custom Panel Shop to assemble the panels according to specifications and drawings.
Kele Description
EMERGENCY STOP, PULL RELEASE, MUSHROOM, 40MM, RED, NON-ILLUMINATED, NO CONTACT BLOCK
Manufacturer
ABB
