MCBH-00 | ABB | Panel Fabrication

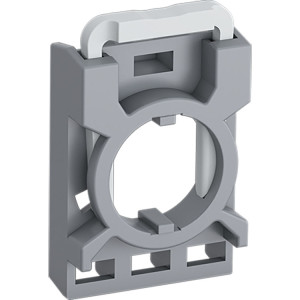

CONTACT BLOCK HOLDER, 3 BLOCKS
Brand:ABB
MPN:MCBH-00
SKU:MCBH-00
product specifications
Type
Contact Block Holder
Contact Blocks
3
product series specifications
Relay Rating: AC: 120V, 6A; 240V, 3A; 480V, 1.5A; 600V, 1.2A DC: 120V,0.55A; 240V, 0.27A; 480V, 0.1A; 600V, 0.1A
Rated Insulation Voltage: 600V
Mechanical Life: 10 million operations (contact block)
Terminals: #14-20 AWG
Contact Material: Silver
Mounting: 0.874" (2.25 cm) hole
Operating Temperature: -13° to 122°F (-25° to 50°C)
Panel Thickness: 0.059" to 0.236" (0.15 to 0.6 cm)
Protection Rating: NEMA type 1, 3R, 4, 4X, 12, 13
Approvals: UL File #E76003; CSA File #LR19700
Warranty: 1 year
product series features
- 22.5 mm switch size
- Quick release contact blocks
- Potentiometer model
- 2 and 3 position switches
- Key operated models
more information & related documents
Series Description
The ABB MXSS series general purpose selector switches are for pilot duty control of electrical equipment such as fans, pumps, compressors or control circuits. The MT series is 10K ohm 280 degree turn potentiometer. These devices use the IEC style of buttons, plus offer economical pricing. When a project requires multiple panels configured in the same way let Kele's experienced panel technicians do it for you. Use Kele's Custom Panel Shop to assemble the panels according to specifications and drawings.
Kele Description
CONTACT BLOCK HOLDER, 3 BLOCKS
Manufacturer
ABB
