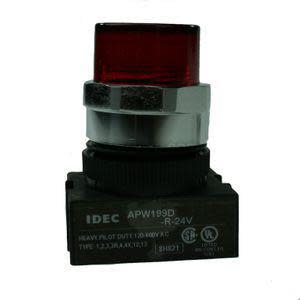

APW199D-R-24V | IDEC | Panel Fabrication

Pilot/Flush/Led/24V/Red Lens

Brand:IDEC

MPN:APW199D-R-24V

SKU:APW199D-R-24

List Price:

$66.64

Today's Price:

$34.65

290 in stock

product specifications

Type

Flush

Color

Red

Diameter

22 mm

Function

Indicator

Lamp Type

LED

Bezel Type

Metal

Supply Voltage (Nominal)

24 VAC, 24 VDC

product series specifications

Materials Of Construction:

Lens: Acrylic

Base: Nylon

Bezel: Chrome-plated die-cast zinc

Terminals: #6-40 (M3.5) screws

Applicable Wire Size:

Minimum: 1 x 22 AWG

Maximum: 2 x 14 AWG or 1 x 12 AWG

Mounting: 0.86" (2.2 cm) hole

Panel Thickness: Panel thickness adjustment ring 0.04" to 0.24" (0.10 to 0.61 cm)

Lamps: T3-1/4 miniature bayonet base

LED: 6 VDC, 52 mA; 12 VAC/VDC, 26 mA; 24 VAC/VDC,13 mA; 120 VAC, 8 mA; 1,000,000 hrs average life

Incandescent: 6.3V, 1W; 12V, 1W; 24V, 1W; 3000 hrs average life

Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13

Approvals: UL File #E65961; CSA File #LR48366, RoHs, CE

Warranty: 1 year

product series features

  • Rugged, oil-tight construction
  • Bezel-threaded lock ring for easy panel installation
  • Incandescent or LED lamps
  • Small size
  • Excellent visibility
  • Multiple voltage input ranges

more information & related documents

Series Description

The APW Series IDEC pilot lights include replaceable incandescent and LED pilot lights. These lights can be mounted on control panels to provide immediate visual status of mechanical equipment such as fans, pumps, compressors, or control circuits on HVAC applications and building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.

Kele Description

PILOT/FLUSH/LED/24V/RED LENS

Manufacturer

IDEC
