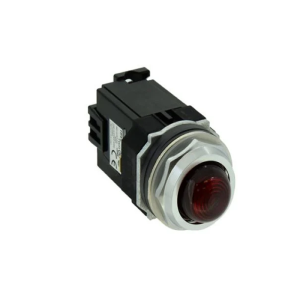

APD1126DNUS | IDEC | Panel Fabrication
PILOT/LED/120V/BLUE LENS
Brand:IDEC
MPN:APD1126DNUS
SKU:APD1126DNUS
product specifications
Type
Transformer Dome
Color
Blue
Diameter
30 mm
Function
Indicator
Lamp Type
LED
Supply Voltage (Nominal)
120 VAC
product series specifications
Materials Of Construction:
Lens: Acrylic
Base: Nylon
Bezel: Chrome-plated die-cast zinc
Terminals: #6-40 (M3.5) screws
Applicable Wire Size:
Minimum: 1 x 22 AWG
Maximum: 2 x 14 AWG or 1 x 12 AWG
Mounting: 0.86" (2.2 cm) hole
Panel Thickness: Panel thickness adjustment ring 0.04" to 0.24" (0.10 to 0.61 cm)
Lamps: T3-1/4 miniature bayonet base
LED: 6 VDC, 52 mA; 12 VAC/VDC, 26 mA; 24 VAC/VDC,13 mA; 120 VAC, 8 mA; 1,000,000 hrs average life
Incandescent: 6.3V, 1W; 12V, 1W; 24V, 1W; 3000 hrs average life
Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
Approvals: UL File #E65961; CSA File #LR48366, RoHs, CE
Warranty: 1 year
product series features
- Rugged, oil-tight construction
- Bezel-threaded lock ring for easy panel installation
- Incandescent or LED lamps
- Small size
- Excellent visibility
- Multiple voltage input ranges
more information & related documents
Series Description

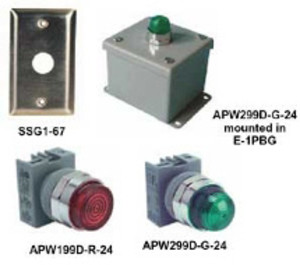

The APW Series IDEC pilot lights include replaceable incandescent and LED pilot lights. These lights can be mounted on control panels to provide immediate visual status of mechanical equipment such as fans, pumps, compressors, or control circuits on HVAC applications and building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.
Kele Description
PILOT/LED/120V/BLUE LENS
Manufacturer
IDEC
Related Documents
APW Series Datasheet
