QL-1-13-DM-KM-03 | CBI | Panel Fabrication

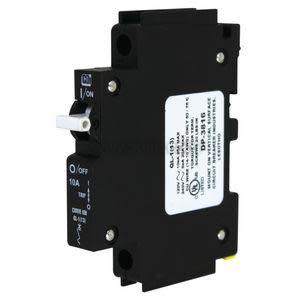

Circuit Breaker 3 Amp 1 Pole Din Mounted
Brand:CBI
MPN:QL-1-13-DM-KM-03
SKU:QL-3
List Price:
$60.60
Today's Price:
$31.51
Log in for customized pricingproduct specifications
Mount
Dual
Type
Hydraulic-Magnetic
Current Rating
3 A
Number of Poles
1
Trip Curve
1, 9, Km
Rated Current
3 A
Interrupting Capacity
10,000 A
Supply Voltage (Nominal)
120 VAC, 240 VAC
product series specifications
Rated Voltage: 120/240 VAC, 50/60 Hz
Rated Current: 1 A, 2A, 3A, 4A, 5A, 8A, 10A, 15A, 20A, 25A
Rated Interruption Capacity: 10,000 A
Protection Method: Hydraulic magnetic technology
Poles: Single pole
Time Delay: 150% rated current, 8-90 sec; 200% rated current 4-28 sec
Operating Temperature: -40° to 140°F (-40° to 60°)
Dimensions: 3.8"H x 0.51"W x 2.7"D (9.7 x 1.3 x 6.8 cm)
Weight: 0.22 lb (0.1 Kg)
Approvals: UL File #E192487, CSA, CE, VDE
Warranty: 1 year
product series features
- Holds 100% rated current independent of ambient temperature
- Resets immediately after tripping
- Mounts to DIN rail
more information & related documents
Series Description
The QL Series circuit breakers provide excellent protection against overloads and short circuits for electrical circuits and small-sized electrical equipment. Reliable and economical, these circuit breakers are popular for HVAC applications and for building automation systems, BAS. If a project requires multiple panels configured in the same way, consider using the experienced panel technicians at Kele's Custom Panel Shop. They will assemble the panels according to specifications and drawings.
Kele Description
CIRCUIT BREAKER, HYDRAULIC-MAGNETIC, 1P, MEDIUM DELAY, 3A, 120/240 VAC, DUAL MOUNT
Manufacturer
CBI
Related Documents
QL Series Datasheet
