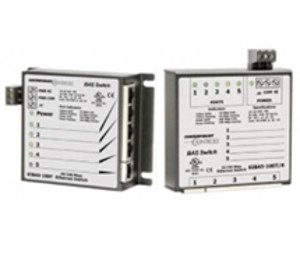

EISK5-GT | Contemporary Controls | Network & Wireless
5P SKORPION SWITCH 24VAC LED
Brand:Contemporary Controls
MPN:EISK5-GT
SKU:EISK5-GT
List Price:
$462.00
Today's Price:
$240.24
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
Unmanaged
Number of Ports
5
DIN Rail Mount
Yes
product series specifications
Supply Voltage: 24 VAC ±10% @ 4 VA, 24 VDC @ 167 mA
Communication: Ethernet communications IEEE 802.3 10/100 Mbps data rate 10 BASE-T, 100 BASE-TX physical layer 100 m (max) CAT 5 cable length
LED Indication:
Ethernet Green = 100 Mbps
Yellow = 10 Mbps
Flash = activity
Operating Temperature: 32° to 140°F (0° to 60°C)
Operating Humidity: 10 to 95% non-condensing
Dimensions: 4.13"H x 3.5"W x 1.25"D (10.5 x 8.9 x 3.2 cm)
Weight: 0.6 lbs (0.27 Kg)
Approvals: CE, UL File #E225652, RoHs
Warranty: 5 years
product series features
- Compact size
- 10BASE-T/100BASE-TX compliant
- Auto-MDIX ports
- Auto-negotiated data rate, duplex and flow control
- Panel and DIN-rail mountable versions
- Powered from an unregulated DC source (10-36 V) or an AC source (8-24 V, 47-63 Hz) via a quick-disconnect terminal strip
more information & related documents
Series Description
The Plug-and-Play (PnP) EIBA BAS Ethernet Switches provide the functionality, mounting convenience, and ruggedness to fit most building automation systems. The popular EIBA5-100T Ethernet switch, which is designed for panel mounting is complemented by its DIN-rail cousin, the EIBA5-100T/R. Utilizing switching technology, the compact and low-cost EIBA switches provide five 10/100 Mbps shielded RJ-45 ports. Each port is Auto-MDIX compliant and can operate as an uplink port, eliminating the need for crossover cables. All ports automatically negotiate data rate, duplex, and flow control.
Kele Description
5P SKORPION SWITCH 24VAC LED
Manufacturer
Contemporary Controls
EBIA Switches EISK5G00B Datasheet
