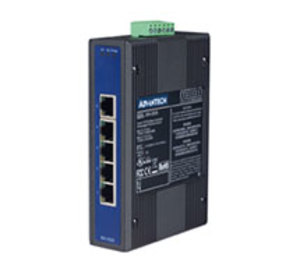

EKI-2725-CE | Advantech Corporation | Network & Wireless
UNMANAGED LIGHT INDUSTRIAL SWITCH, 5-PORT GIGABIT
Brand:Advantech Corporation
MPN:EKI-2725-CE
SKU:EKI-2725-CE
List Price:
$823.00
Today's Price:
$427.96
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
Unmanaged
Number of Ports
5
DIN Rail Mount
Yes
product series specifications
Supply Voltage: 12-48 VDC, redundant dual inputs
Supply Current:
EKI-2525-AE 3w
EKI-2525M/2528-AE 5w
Fault Output: 1 Relay Output
Communication: Ethernet
Communication Ports:
EKI-2525 5 10/100 Mbps ports
EKI-2525M-AE 4 10/100 Mbps ports and 1 - 100 M.M Fiber port
EKI-2528 8 10/100 Mbps ports
Data Throughput: 1 00Mbps
Protocol: EKI-2525/2525M/2528-AE IEEE 802.3, 802.3u, 802.3x
LED Indication: EKI-2525/2525M/2528-AE P1, P2, P-Fail, 10/100T(X):Link/Activity and Duplex/Collision
Operating Temperature: 1 4° to 140°F (-10° to 60°C)
Operating Humidity: 5-95% RH non-condensing
Enclosure Rating: NEMA 1, IP30/IP40
Mounting: DIN/panel
Flow Control: Yes
Housing Type: Metal, Plastic+Metal
Dimensions: EKI-2525/2525M/2528-AE 1.46"H x 5.51"W x 3.74"D (37 x 140 x 95 mm)
Approvals: CE, FCC, UL File #E327848, C1D2 (EKI-2525/2528/2525M)
Warranty: 5 years
product series features
- Slim size, DIN-rail mount
- Redundant 12-48Vdc power input
- Rugged extruded aluminum enclosure IP30 and IP40 rating
- Hardware status LED light
- Relay output for alarm
more information & related documents
Series Description
The Advantech EKI Series unmanaged industrial ethernet switches are designed for multiple ethernet connections with 5 or 8 port models. Models are available in standard 10/100Mbps with both copper wire and fiber optic connections. These units are protected with power reverse polarity and an overload fuse.
Kele Description
UNMANAGED LIGHT INDUSTRIAL SWITCH, 5-PORT GIGABIT
Manufacturer
Advantech Corporation
Related Documents
EKI-2525/2528 Specifications EKI-2525_2528_Manual_Ed1 EKI-2525M/2526M Specifications EKI-2525M_2526M_Manual_Ed1 EKI-2725_I Series Data Sheet EKI-2728-CE-data-sheet-09.23.20 EKI-3525/3528 Specifications EKI-3725 3728_DS EKI-4524I 4524RI_DS EKI-4524I User Manual EKI-7526I 7526MI_DS EKI-7526I User Manual EKI-7529MI/ST User Manual EKI-7529MI_DS
