BASRT-B | Contemporary Controls | Network & Wireless

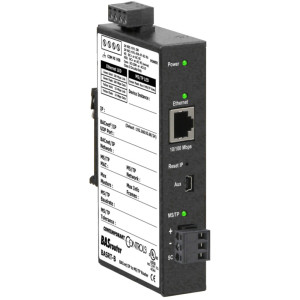

BAS Router BACnet/IP to MS/TP DIN Rail Mount
Brand:Contemporary Controls
MPN:BASRT-B
SKU:BASRT-B
product specifications
Power Supply
24 VAC, 24 VDC
Type
Multi-Network
Communication Input
BACnet IP
Communication Out
BACnet MS/TP
DIN Rail Mount
Yes
product series specifications
Supply Voltage: 24 VAC @ 4 VA, 24 VDC @ 167 mA
Communication: Ethernet BACnet IP, IEEE 802.3 10/100 Mbps data rate 10BASE-T, 100BASE-TX (100 m (max) CAT5 cable length)
MS/TP: BACnet MS/TP, ANSI/ASHRAE 135 (ISO 16484-5) 9600, 19200, 38400, 76800 bps data rate EIA-485 (1200 m (max) cable length)
LED Indication:
Power: Green = power OK
Ethernet:
Green = 100 Mbps
Yellow = 10 Mbps
Flash = activity
MS/TP: Flashing green = receive activity
Operating Temperature: 32° to 140°F (0° to 60°C)
Operating Humidity: 10 to 95% (non-condensing)
Dimensions: 4.85"H x 2.74"W x 1.0"D (12.3 x 1.9 x 2.5 cm)
Mounting: DIN Rail (35mm)
Weight: 0.6 lbs (0.27 Kg)
Approvals: CE Mark; CFR 47, Part 15 Class A, RoHS
Warranty: 2 years
product series features
- Versatile routing
- Flexible communications
- IP network support
- Easy installation
more information & related documents
Series Description
The BASRT-B BACnet multi-network router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MSTP. This allows the system integrator to mix BACnet network technologies within a single BACnet internetwork. There are two physical communication ports on the BAS Router. One is a 10/100 Mbps Ethernet port and the other an isolated MS/TP port. Configuration is accomplished via a web page. The BACnet router is housed in a plastic case that is powered from a USB port on a laptop computer. There is one MS/TP port and one 10/100 Mbps Ethernet port.
Kele Description
BAS ROUTER BACNET/IP TO MS/TP, 5 BBMD ENTRIES
Manufacturer
Contemporary Controls
Related Documents
BASRT-B Installation Guide
