110B | Neurologic Research Corporation | Network & Wireless

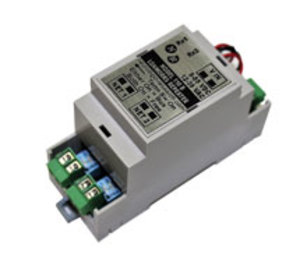

LONWORKS REPEATER, 2 CHANNELS
Brand:Neurologic Research Corporation
MPN:110B
SKU:110B
List Price:
$746.00
Today's Price:
$387.92
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
Repeater
Communication Input
LON
Communication Out
LON
product series specifications
Supply Voltage: 12-36 VDC or 9-26 VAC @ 30 mA typical. Polarity insensitive wiring.
Network Transceiver Type: Two Echelon FTT-10A transceivers at 78 kbps. DC blocking capacitors for Link Power network are installed.
Network Termination: Separate jumpers for each channel support free and bus topology termination.
Multi-Segment Operation: Max of 5 repeaters can be daisy chained to construct a 10-channel repeater hub.
Protection: Input power is fused and transient voltage protected. Fuse automatically resets when fault is removed.
Enclosure Rating: NEMA 1, Material Grey flame retardant Noryl UL94_V0
Operating Temperature: 32° to 176°F (0° to 80°C)
Operating Humidity: 0-90% RH non-condensing
Dimensions: 3.54"H x 1.42"W x 2.28”D (90 x 36 x 58 mm):
Mounting: DIN rail mount to 35 mm rail
Weight: 0.3 lb (0.14 Kg)
Warranty: 1 year
product series features
- Extends wiring distance of FTT-10 LonWorks Networks
- Up to 5 repeaters can be daisy chained together to create a multi-segment repeater of up to 10 channels
- Low cost alternative to routers configured as repeaters
- All wiring is to removable terminal blocks for ease of service
- Polarity insensitive AC/DC wide input voltage range
- Input power has over current and transient voltage suppression
- Termination for bus and free topology
- 3.5 mm network jack for local installation tool connection
- Communication and power indicators to assist in field diagnostics
- DIN Rail mount enclosure
more information & related documents
Series Description
The 110B Series is a two-channel physical layer repeater for FTT-10 LonWorks networks. Data received on one channel is reconditioned and re-transmitted on the other channel. Each Model 110B effectively doubles the wiring distance and the number of nodes that can be placed on the network. On-board jumpers allow each channel to be terminated independently for bus or free topology. A local 3.5 mm network jack allows a convenient way to connect an installation or diagnostic tool to the network without disconnecting any wires. Three LEDs provide diagnostic information for troubleshooting. A green LED indicates when power is applied. Two red LEDs indicate when data is being received on each of the two local channels.
Kele Description
LONWORKS REPEATER, 2 CHANNELS
Manufacturer
Neurologic Research Corporation
Related Documents
0110B Data Sheet 0100
