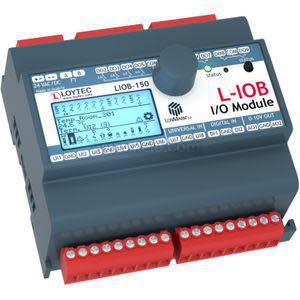

LIOB-150 | Loytec | Network & Wireless

LON TP/FT-10 I/O Modules 8UI 2DI 2AO 8DO

Brand:Loytec

MPN:LIOB-150

SKU:LIOB-150

List Price:

$1,733.00

Today's Price:

$901.16

product datasheet

catalog page

Lead time of 5 days. Chat with Kele experts now

product specifications

Power Supply

24 VAC, 24 VDC

Type

Module

Communication Protocol

LON

Number of Ports

product series specifications

Supply Voltage: 24 VAC ± 10 % # 2.7 VA, 24 VDC @ 113 mA

Channels:

LIOB-1xx: 1x LIOB-FT or LonMark TP/FT-10

LIOB-4xx: 2x Ethernet (100Base-T) LIOB-IP or LonMark IP-852

LIOB-5xx: 2x Ethernet (100Base-T) LIOB-IP or BACnet/IP, OPC XML-DA

Communication:

LIOB-1xx: Type LIOB-FT, CEA-709 (LON)

LIOB-4xx: Type LIOB-IP, LonMark IP-852

LIOB-5xx: Type LIOB-BIP, BACnet/IP, LIOB-IP, OPC XML-DA

Operating Temperature: 32° to 122°F (0° to 50°C)

Operating Humidity: 10-90% RH @ 122°F (50°C) non-condensing

Dimensions: 4.21"W x 3.94"H x 2.95”D (10.7 x 10.0 x 7.5 cm)

Weight: 0.71 lb (0.32 Kg)

Approvals: CE, FCC, LonMark 3.4. RoHs

Warranty: 2 years

product series features

Physical Inputs and Outputs
Stackable I/O Modules supporting LIOB-Connect
Models available for LonMark (TP/FT-10 and IP-852) and BACnet Networks (BACnet/IP)
128x64 display with backlight
Local access to information about device status and data points
Manual operation using the jog dial
Configuration through L-INX configuration tool
Removable terminal with a clamping yoke connection to accomodate diameters from 0.2-2.5 mm² (26-12 AWG)
Simple device replacement without software tool

more information & related documents

Series Description

The Loytec L-IOB I/O Module family of products consists of smart I/O devices featuring different I/O setups. Based on LOYTEC's 32-bit L-CORE platform the L-IOB I/O Modules provide first class performance and extensive resources. The L-IOB I/O Modules contain a 128x64 display with backlight. The display shows device and data point information. A jog dial is used for local operation by navigating through detailed information on the display and for operating and overriding of data points. The configuration of the L-IOB I/O Modules is done with the L-INX Configuration Tool which is free to download from Loytec.

Kele Description

LON TP/FT-10 I/O MODULES 8UI 2DI 2AO 8DO

Manufacturer

Loytec
