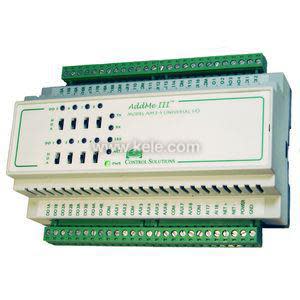

AM3-SB | Control Solutions | Network & Wireless
BACnet MS/TP Slave, 32 I/O
Brand:Control Solutions
MPN:AM3-SB
SKU:AM3-SB
List Price:
$2,791.00
Today's Price:
$1,451.32
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
Universal
Communication Protocol
BACnet MS/TP
Number of Ports
14
product series specifications
Supply Voltage:
AMJRx: 10-30 VDC or 24 VAC, 50/60 Hz
AM3x: 18-30 VDC or 24 VAC, 50/60 Hz
Supply Current:
AMJRx: 0.15A @ 24VDC
AM3x: 0.3A @ 24VDC
Communication Ports:RS-485 Port
Baud Rate:
BACnet: supports 9600, 19200, 38400, 76800
Modbus: supports 4800, 9600, 19200, 38400
Analog Input:
AMJRx: 12 universal
AM3x: 18 (16 universal + 2 analog)
Analog Output: AM3x: 4, 4-20 mA (0-20 mA), 8-bit resolution
Discrete Outputs:
AMJRx: 2, open drain FET,1A @ 30 VDC
AM3x: 8, form A relay, 5A @120VAC
Supported Protocols:
AMJR-14-SB/AM3-SB: BACnet MS/TP Slave
AMJR-14-SM/AM3-SM: Modbus RTU Slave
Signal LEDs:
AM3x: 8, power and consumption
Resolution:
AMJRx: 10-bit
AM3x: up to 16-bit
Operating Temperature:
AMJRx: -40° to 158°F (-40° to 70°C)
AM3x: -22° to 158°F (-30° to 70°C)
Operating Humidity: 5-95% RH non-condensing
Mounting: DIN rail
Dimensions:
AM3x: 3.94"H x 6.1"W x 2.36"D (100 x 155 x 60mm)
AMJRx: 3.94"H x 2.76"W x 2.36"D (100x 70 x 60mm)
Weight:
AMJRx: 1.5 lbs (0.68 Kg)
AM3x: 2 lbs (0.91 Kg)
Approvals: CE, FCC, RoHs
Warranty: 1 year
product series features
- Easy to use slave I/O and programmable I/O
- Models for BACnet MS/TP
- Models for Modbus RTU
more information & related documents
Series Description
The Control Solutions AddMe® Series I/O devices are ideal for expansion of virtually any distributed building automation control system. These devices can be used as slave I/O or programmable controllers. The AddMe® series is Control Solutions' original line of general purpose programmable I/O devices that have a long history as work horses in the industry.
Kele Description
BACNET MS/TP SLAVE, 32 I/O
Manufacturer
Control Solutions
Related Documents
AM3-SB Datasheet
