BA/WT-BLE-Q-SO-BAT | BAPI | Network & Wireless
QUANTUM WIRELESS TEMP SENSOR, W/ SETPOINT AND OVERRIDE, BATTERY POWERED
Brand:BAPI
MPN:BA/WT-BLE-Q-SO-BAT
SKU:BA/WT-BLE-Q-SO-BAT
List Price:
$256.00
Today's Price:
$133.12
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
Sensor
Display
No
DIN Rail Mount
No
product series specifications
Battery Power: Two included 3.6V 14505, 14500 or equivalent lithium batteries (Note: Standard AA batteries are not compatible)
Wire Power: 9 to 30 VDC or 24 VAC, halfwave rectified
Temperature Sensor Accuracy: ±1.7°F (0.95°C) from 32 to 158°F (0 to 70°C)
Temperature Range: -4 to 221°F (-20 to 105°C)
Environmental Operation Range:
Temp: -4 to 149°F (-20 to 65°C)
Humidity: 10 to 90%RH non-condensing
Enclosure Material & Rating: ABS Plastic, UL94 V-0
product series features
- Optional temperature setpoint and occupant override
- User adjustable settings
- Transmits to a digital Gateway or a wireless-to-analog Receiver
more information & related documents
Series Description

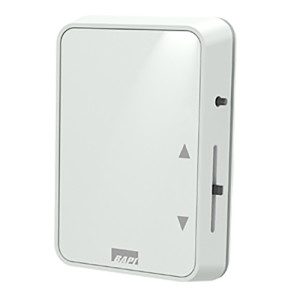

The BAPI-Stat “Quantum” Wireless Sensor measures the room temperature and transmits the data via Bluetooth Low Energy to a receiver or gateway. It is available with optional temperature setpoint and occupancy override.
Kele Description
QUANTUM WIRELESS TEMP SENSOR, W/ SETPOINT AND OVERRIDE, BATTERY POWERED
Manufacturer
BAPI
BLE Wall Sensor Install Guide
