BA/WT-BLE-D-4-BB-BAT | BAPI | Network & Wireless
WIRELESS DUCT TEMP SENSOR, 4" PROBE, BATTERY POWERED
Brand:BAPI
MPN:BA/WT-BLE-D-4-BB-BAT
SKU:BA/WT-BLE-D-4-BB-BAT
List Price:
$379.00
Today's Price:
$197.08
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
Sensor
Display
No
DIN Rail Mount
No
product series specifications
Battery Power: Two included 3.6V 14505, 14500 or equivalent lithium batteries (Note: Standard AA batteries are not compatible)
Wire Power: 9 to 30 VDC or 24 VAC, halfwave rectified
Temperature Sensor Accuracy: ±1.0°F (0.55°C) from 32 to 158°F (0 to 70°C)
Temperature Range: -4 to 221°F (-20 to 105°C)
Environmental Operation Range:
Temp: -4 to 149°F (-20 to 65°C)
Humidity: 10 to 90%RH, non-condensing
Enclosure Rating, Material & Material Rating: IP66, UV-Resistant Polycarbonate, UL94 V-0
product series features
- User adjustable settings
- Onboard memory
- Transmits to a digital Gateway or a wireless-to-analog Receiver
more information & related documents
Series Description

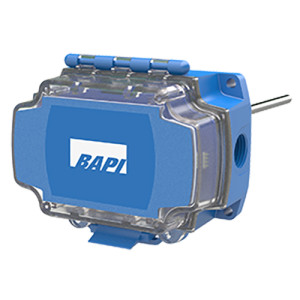

<p>BAPI’s DuctWireless Sensor measures the temperature and transmits the data via BluetoothLow Energy to a receiver or gateway. This unit features a rugged IP66- ratedBAPI-Box enclosure and 1/4" (6.4mm) stainless steel probe with standardprobe lengths from 4" to 18" (102 to 457mm).</p>
Kele Description
WIRELESS DUCT TEMP SENSOR, 4" PROBE, BATTERY POWERED
Manufacturer
BAPI
BLE Duct Temp & RH Data Sheet
