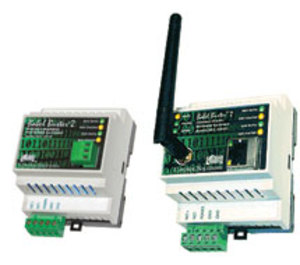

* product series image displayed

BB2-7010-01-232 | Control Solutions | Network & Wireless

BABEL BUSTER BB2-7010 BACNET IP TO MODBUS GATEWAY, RS-232 RTU PORT

Brand:Control Solutions

MPN:BB2-7010-01-232

SKU:BB2-7010-01-232

List Price:

$-.--

Today's Price:

$-.--

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Power Supply

24 VAC, 24 VDC

Type

Ethernet to Ethernet

Communication Input

BACnet IP

Communication Out

Modbus

product series specifications

Supply Voltage: 10-30 VDC @ 100 mA or 12-24 VAC @ 3.6 VA, 50/60 Hz

Communication Ports:

BB2-3010: 2 RS-485 ports

BB2-6010/7010/7030: 1 RS-485 and 1 RJ-45 port

Baud Rate:

MS/TP baud rates: 9600, 19200, 38400, 76800;

Modbus RTU baud rates: 4800, 9600, 19200, 38400:

Signal LEDS:

BB2-3010/7030: 4; device data/status, BUS data/status

BB2-6010/7010:2; device data/status

Operating Temperature: -40° to 185°F (-40° to 85°C)

Operating Humidity: 5-95% RH non-condensing

Mounting: DIN rail

Dimensions: 3.94"H x 2.76"W x 2.36”D (100 x 70 x 60 mm)

Weight: 2 lbs (0.91 kg)

Approvals:

BB2-3010: FCC, CE, UL File #E312255, BTL Listed

BB2-6010/7010/7030: FCC Class A, CE

Warranty: 1 year

product series features

Easy to use and cost effective
Variety of models support all major building automation protocols
BACnet to LonWorks or LonWorks to BACnet translation
BACnet to Modbus or Modbus to BACnet translation
BACnet to SNMP or SNMP to BACnet
LowWorks to Modbus or Modbus to LonWorks translation
Modbus to BACnet IP to WiFi Sensors (Point6, AirTest, Veris)
Bacnet to ZigBee and Modbus to ZigBee

more information & related documents

Series Description

Control Solutions BB2 Babel Buster Series gateways are devices that re-map network devices having different protocols. Variety of model options provide support for building automation with BACnet IP or MS/TP, LonWorks, Modbus RTU, TCP and selected wireless protocols such as ZigBee and WiFi. The device can create master/slave operation or support multiple data input sorts from other connected devices.

Kele Description

BABEL BUSTER BB2-7010 BACNET IP TO MODBUS GATEWAY, RS-232 RTU PORT

Manufacturer

Control Solutions
