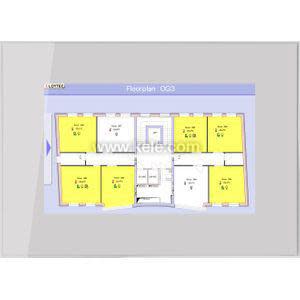

LVIS-3ME7-G1 | Loytec | Network & Wireless

7in. Glass-Touch Display Silverver, Multi-Protocol

Brand:Loytec

MPN:LVIS-3ME7-G1

SKU:LVIS-3ME7-G1

List Price:

$4,304.00

Today's Price:

$2,238.08

5 in stock

product datasheet

catalog page

product specifications

Power Supply

24 VAC, 24 VDC

Type

BACnet Display

Display

Yes

Communication Input

RS-485

product series specifications

Supply Voltage:

LVIS-3ME7: 20 to 35 VDC, 24 VAC ± 10%

LVIS-3ME12: 24 VDC ± 10% or 85 to 240 VAC

LVIS-3ME15: 24 VDC ± 10% or 85 to 240 VAC

Supply Watts:

LVIS-3ME7: 3 Watts/8 Watts with backlight

LVIS-3ME12: 2.5 Watts/13 Watts with backlight

LVIS-3ME15: 2.5 Watts/16 Watts with backlight

Channels: 7W/13W with backlight @ 85-240VAC

Communication: BACnet, LON, Modbus

Display Type: TFT Touch Display

Display:

LVIS-3ME7: 7.0" (17.8cm)

LVIS-3ME12: 12.1" (30.73 cm)

LVIS-3ME15: 15.0" (38.1 cm)

Operating Temperature: 50° to 104°F (10° to 40°C)

Operating Humidity: 10-90% RH @ 122°F (50°C) (non-condensing)

Weight:

LVIS-3ME7-GX: 3.04 lb (1.38 Kg)

LVIS-3ME12-AX: 5.51 lb (2.50 Kg)

LVIS-3ME15-XX: 7.72 lb (3.50 Kg)

LVIS-FRAME7: 1.08 lb (0.49 kg)

LVIS-FRAME12: 2.31 lb (1.05 kg)

LVIS-FRAME15: 3.19 lb (1.45 kg)

Approvals: CE, FCC

Warranty: 2 years

product series features

High resolution TFT touch display with dimmable backlight
Anodized aluminum front frame
Flush-mounting in combination with the mounting frame
External temperature sensor L-TEMP1 (optional, up to 4 sensors) and 2 inputs for external light switches
Support multi-protocol (BACnet, LON, Modbus and OPC)l
Simple graphical programming with L-VIS configuration software included

more information & related documents

Series Description

The Loytec LVIS Series touch panel are visual operation devices suited for building automation system applications. They provide visual or audio information at the panel with customized or standard graphic designs. All models support LonMark, BACnet, and Modbus TCP networks. Communication and connectivity is provided via Ethernet/IP, BACnet/IP, BACnet MS/TP, and RS-485 terminal connections. The LVIS Series comes with a 7, 12.1, or 15 screen in an aluminum adonized finished frame (12 and 15 models only) or a frameless glass front with capacitive touch. These units have an internal switch which allows a daisy chain topology of up to 20 devices and also allows redundant Ethernet (ring topology) enabled by RSTP.

Kele Description

7IN GLASS-TOUCH DISPLAY SILVER, MULTI-PROTOCOL

Manufacturer

Loytec
