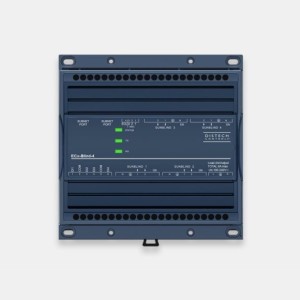

* product series image displayed

CDIX-LGT4DSTPSX-00 | Distech Controls | Thermostats & Controllers

Light control module with 0-277 VAC power supply input, 4 DI, 4 On/Off (0-277VAC) light outputs and 4 analog light dimming outputs with screw terminal connectors. For UL Market Only.

Brand:Distech Controls

MPN:CDIX-LGT4DSTPSX-00

SKU:CDIX-LGT4DSTPSX-00

This part requires a license. Log in to verify your license or submit a form to request a license.

Lead time of 15 days. Chat with Kele experts now

product series features

Part of an extensive range of lighting and shade / sunblind expansion modules that enables smart cross-management of HVAC, lighting, and shades / sunblinds as a whole, creating a unique Smart Room Control solution.
The main HVAC controller and its associated expansion modules form a single device on the network that reduces network traffic and facilitates BMS integration
Seen as an extension of the main HVAC controller when configuring, allowing you to save engineering time.
Quick-link connectors for direct installation into the ceilings, or traditional detachable connectors for use with optional strain reliefs and terminal block covers.
Integrated digital inputs to interface with light switches, window contacts, etc...
Separate power supply for loads and internal electronics allows for dedicated metering, leading to more accurate energy consumption analysis.
Fail-safe mode to comply with most regulation requirements.

more information & related documents

Series Description

The ECx-Light Series Expansion Modules are microprocessor-based interfaces that extend the number of inputs and outputs provided by the ECLYPSE™ Connected System Controllers, ECLYPSE Connected VAV Controllers, ECLYPSE Terminal Unit TU/PTU, ECL/ECBPTU Series controllers, and ECL/ECB-VAV controllers. When connected to one of these HVAC programmable controllers, each ECxLight-4 expansion module can control 4 On/Off lighting load and each ECx-Light-4D expansion module can control 4 On/Off or 1-10 V dimming lighting loads. Custom program the ECx-Light expansion modules directly when configuring the main HVAC controller using EC-gfxProgram. This allows you to quickly and easily create your own control sequences capable of meeting the most demanding requirements of any engineering specification.

Kele Description

LIGHT CTRL MOD W/0-277 VAC PS INPUT, 4 DI, 4 ON/OFF (0-277VAC) LO, 4 ANALOG LIGHT DO W/TERM CONN

Manufacturer

Distech Controls
