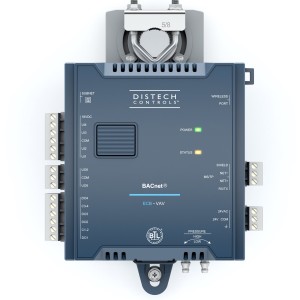

CDIL-VASX-10 | Distech Controls | Thermostats & Controllers

LonMark certified single-duct VAV controller for cooling only and cooling with reheat VAV box with 3 UI, 3 DO (Triac) and 1 UO. Built-in differential pressure transducer (+/-500Pa, +/-2.0" w.c.) and actuator (5Nm, 45in-pd).

Brand:Distech Controls

MPN:CDIL-VASX-10

SKU:CDIL-VASX-10

This part requires a license. Log in to verify your license or submit a form to request a license.

Lead time of 15 days. Chat with Kele experts now

product series features

Internal power supply uses power factor correction (PFC) to optimize power usage when multiple controllers are connected at the same power transformer
Flexible inputs and outputs support all industry-standard VAV unitary applications
Rugged hardware inputs and outputs eliminate the need for external protection equipment
Polarity free, on-board airflow sensor for precise airflow monitoring and control at low and high airflow rates
Built-in actuator with an integrated position feedback system for worry-free operation
Factory pre-loaded applications allow for out-of-the-box, energy efficient operation of standard VAV equipment
Optimized air balancing through myDC AirBalancing saving time during the commissioning process
Supports EC-gfxProgram, making Building Automation System programming effortless
Open-to-Wireless™ ready, supporting a wide variety of wireless sensors and switches and helping to reduce installation costs
Supports the Allure™ Series Communicating Sensors, providing intelligent sensing and environmental zone control

more information & related documents

Series Description

The ECL-VAVS controllers are microprocessor-based programmable variable air volume (VAV) controllers designed to control cooling only and cooling with reheat single duct variable air volume boxes. Each controller uses the LonTalk® communication protocol and is LONMARK certified as an SCC VAV.

Kele Description

LONMARK 1-DUCT VAV CTRLR W/3 UI, 3 DO (TRIAC), 1 UO, DP XDUCER (+/-500PA, +/-2.0" W.C.), ACT

Manufacturer

Distech Controls
