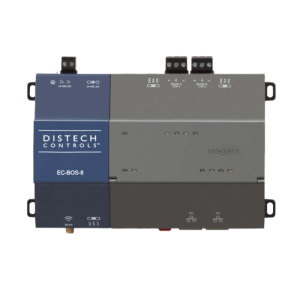

CDIDI-BOS8USWIFI | Distech Controls | Thermostats & Controllers

EC-BOS-8 includes two isolated RS485 ports, two 10/100MB Ethernet ports, USB Backup & Restore and Wi-Fi connectivity. US WiFi setting for enabling WiFi on EC-BOS-8 units installed in the US.

Brand:Distech Controls

MPN:CDIDI-BOS8USWIFI

SKU:CDIDI-BOS8USWIFI

This part requires a license. Log in to verify your license or submit a form to request a license.

product series features

Scalable licensing model and modular hardware make the ECBOS-8 suitable for installation in small buildings, as well as large multi-unit campuses when combined with EC-Net Supervisor
Integrates many communication protocols and automation systems including HVAC, lighting, energy, fire & smoke, physical access, video and industrial/processing
Two on-board isolated RS-485 ports for connecting to various common networks, e.g. BACnet MS/TP, Modbus RTU, Wiegand access control devices
Option modules for additional physical network connections, e.g. LONWORKS© FTT-10A, RS-232, RS-485, and Wiegand access readers
USB type A port for station backup and restore functions

more information & related documents

Series Description

The EC-BOS-8 is a compact, embedded controller and server platform for connecting multiple and diverse devices and sub-systems. With Internet connectivity and Webserving capability, the EC‑BOS‑8 provides integrated control, supervision, data logging, alarming, scheduling and network management. It streams data and graphical displays to a standard Web browser via an Ethernet or wireless LAN, or remotely over the Internet. The EC-BOS-8 operates with EC-NetTM  web-based building management platform powered by the Niagara Framework®. The EC-BOS-8 can also run EC-Net Access for managing access control systems.

Kele Description

EC-BOS-8 INCLUDES 2 RS485, 2 10/100MB ETHERNET, USB BACK UP & RESTORE, WI-FI CONN

Manufacturer

Distech Controls
