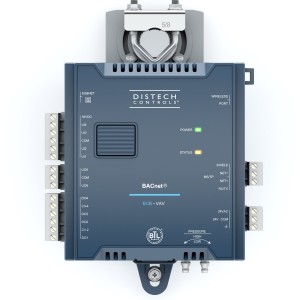

CDIB-VAXX-IMP-10 | Distech Controls | Thermostats & Controllers

B-ASC single-duct VAV controller for cooling only, cooling with reheat, serial/parallel fan VAV box with 4UI, 4 DO (Triac) and 2 UO. Built-in differential pressure transducer (0-500Pa, 0-2.0" w.c.) and actuator (5Nm, 45in-pd). Pre-loaded apps in Imperial Units.

Brand:Distech Controls

MPN:CDIB-VAXX-IMP-10

SKU:CDIB-VAXX-IMP-10

catalog page

This part requires a license. Log in to verify your license or submit a form to request a license.

product series features

Internal power supply uses power factor correction (PFC) to optimize power usage when multiple controllers are connected at the same power transformer
Flexible inputs and outputs support all industry-standard VAV unitary application
Rugged hardware inputs and outputs eliminate the need for external protection equipmen
Polarity free, on-board airflow sensor for precise airflow monitoring and control at low and high airflow rate
Built-in actuator with an integrated position feedback system for worry-free operation
Factory pre-loaded applications allow for out-of-the-box, energy efficient operation of standard VAV equipment
Optimized air balancing through myDC AirBalancing saving time during the commissioning process
End-to-end solution for support of Smart Room Control of HVAC equipment, lighting and sunblinds
Supports EC-gfxProgram, making Building Automation System programming effortless
Open-to-Wireless™ ready, supporting a wide variety of wireless sensors and switches and helping to reduce installation costs
Supports the Allure™ Series Communicating Sensors, providing intelligent sensing and environmental zone control

more information & related documents

Series Description

The ECB-VAV controller is a microprocessor-based programmable variable air volume (VAV) controllers designed to control any variable air volume box. Each controller uses the BACnet® MS/TP LAN communication protocol and is BTL® -Listed as BACnet Application Specific Controllers (B-ASC).

Kele Description

B-ASC 1-DUCT VAV CTRLR VAV BOX W/4UI, 4 DO (TRIAC), 2 UO, DP XDUCER (0-500PA, 0-2.0" W.C.), ACT

Manufacturer

Distech Controls
