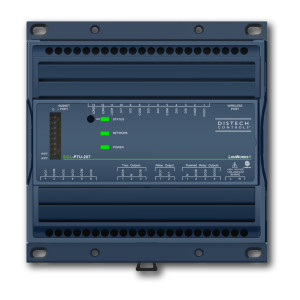

CDIB-PTU207XXX-00 | Distech Controls | Thermostats & Controllers

B-ASC programmable BTL-Listed room controller for terminal applications such as fan coil, chilled ceiling and others with universal power supply input (100-240VAC), 3 DI, 2 UI, 1 SI for NTC sensor, 3 DO (Fan, Relay 230 VAC), 1 DO (Electric Heater, Relay 255 VAC), 2 DO (Valves, Triac 230 VAC) and 4 AO. Support ECx-Light and ECx-Blind lights and blinds control modules.

Brand:Distech Controls

MPN:CDIB-PTU207XXX-00

SKU:CDIB-PTU207XXX-00

catalog page

This part requires a license. Log in to verify your license or submit a form to request a license.

Lead time of 15 days. Chat with Kele experts now

product series features

Flexible inputs and outputs support all industry-standard terminal unitary applications
Rugged hardware inputs and outputs eliminate the need for external protection equipment
Factory pre-loaded applications allow for out-of-the-box, energy efficient operation of standard terminal unitary equipment
End-to-end solution for support of Smart Room Control of HVAC equipment, lighting and sunblinds
Supports EC-gfxProgram, making Building Automation System programming effortless
Open-to-Wireless™ ready, supporting a wide variety of wireless sensors and switches and helping to reduce installation costs
eu.bac Certified Control Efficiency guarantees the highest level of performance of the products and systems
Controllers are BTL-listed and WSP-certified, which guarantee interoperability with other manufacturers’ BTL-listed controllers

more information & related documents

Series Description

The ECB-PTU Series controllers are microprocessor-based programmable controllers designed to control powered terminal units such as powered fan coil units, heat pumps units, and chilled beams. Each controller uses the BACnet® MS/TP LAN communication protocol and is BTL® -Listed as BACnet Application Specific Controllers (BASC) and WSP Certified. These controllers are optimized for ultra-low power consumption and can be operated as stand-alone units or as part of a networked system to suit any installation requirement.

Kele Description

B-ASC PGM BTL ROOM CTRLR FOR FCU, CC, 100-240VAC INPUT, 3 DI, 2 UI, 1 SI, 3 DO, 1 DO, 2 DO, 4 AO

Manufacturer

Distech Controls
