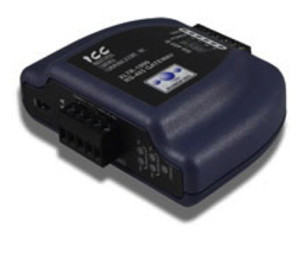

MIRIUS | ICC | Network & Wireless
RS485 TO RS485 GATEWAY
Brand:ICC
MPN:MIRIUS
SKU:MIRIUS
List Price:
$1,289.00
Today's Price:
$670.28
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
RS-485 to RS-485
Communication Input
BACnet MS/TP
Communication Out
Modbus
product series specifications
Supply Voltage: 7 - 24 VDC @ 15 mA
Communication: MS/TP ANSI/ASHRAE 135, (ISO 16484-5) 9600, 19200, 38400, 76800, 115.2k baud rate EIA-485 physical layer 1200 m (max) cable length
LED Indication:
Module Status Off = No power
Green = Power normal function
Flashing Green = Gateway is connected via USB
Flashing Red = Fatal error
RS485 Green (TX) = Transmitting data
Red (RX) = Receiving data
Operating Temperature: 14 to 122°F (-10 to 50°C)
Operating Humidity: 20 to 90% non-condensing
Dimensions: 4" x 3" x 1.5" (10.16 x 7.62 x 3.81 cm)
Weight: 1.0 lb (0.45 Kg)
Warranty: 1 year
product series features
- USB connectivity
- Can be powered via USB
- 32 bit processor
- Baud rates up to 115.2K
- Mounting options: Desktop, DIN-Rail, Panel/Wall
more information & related documents
Series Description
The ICC XLTR-1000 Series provides simultaneous support for many different RS485 communication protocols, allowing complex interchanges of data between otherwise incompatible networks. When properly configured, the gateway will become essentially 'transparent' on the networks, and the various network devices can engage in seamless dialogs with each other.
Kele Description
RS485 TO RS485 GATEWAY
Manufacturer
ICC
Related Documents
Gateway Configuration Manual
