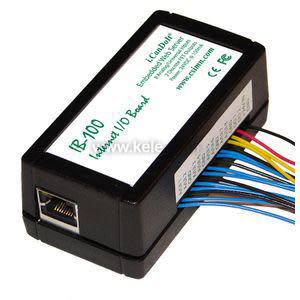

IB-100 | Control Solutions | Network & Wireless
Internet I/O Board, Web Server, 8A/UI, 2 Do
Brand:Control Solutions
MPN:IB-100
SKU:IB-100
List Price:
$1,967.00
Today's Price:
$1,022.84
Log in for customized pricingproduct specifications
Power Supply
24 VAC, 24 VDC
Type
Analog/Digital
Communication Protocol
BACnet IP
Number of Ports
14
product series specifications
Supply Voltage:
Communication Ports:
IB-110: RS-485 Serial Port
Analog Input:
IB-100/110: 8
IB-100/110: 0-10VDC, Thermistor, dry contact
IB-100: Jumper configurable
IB-110: Soft configurable (no jumpers) Discrete Outputs Open drain FET, current sink 1A @ 24VDC
IB-110: 2
Supported Protocols:
IB-100: SNMP
IB-110: SNMP, Modbus RTU
Operating Temperature: -40°C to +85°C
Operating Humidity: 5% to 90%
Dimensions: 38mm H x 52mm W x 103mm D
Weight: 2 lbs
Approvals: CE, FCC, RoHs
Warranty: 1 year
product series features
- Remote Monitoring and Alarms
- Event Notifi cation via SNMP traps or email
- User Programmable Control Algorithms
- User Programmable Web Pages
- Web Based Remote Monitoring via LogMyData.com
more information & related documents
Series Description
Control Solutions' i.Board Series packs a in. best of collection in. of web enabled features from the i.CanDoIt family into a tiny, low-cost, stick-it-anywhere box. It is a simple and cost effective solution for all those applications where you need the sophistication of an Internet Appliance but only have a handful of points to monitor.
Kele Description
INTERNET I/O BOARD, WEB SERVER, 8A/UI, 2 DO
Manufacturer
Control Solutions
Related Documents
IB-100 Datasheet
