AI-XFMR | Contemporary Controls | Network & Wireless

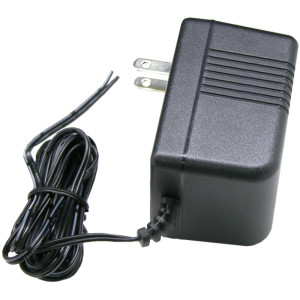

120 VAC to 24 VAC Receptacle Wall-Mounted Power Adapter

Brand:Contemporary Controls

MPN:AI-XFMR

SKU:AI-XFMR

List Price:

$1,007.00

Today's Price:

$523.64

Lead time of 4 days. Chat with Kele experts now

product datasheet

catalog page

product specifications

Type

Adapter

product series specifications

Supply Voltage: 24 VAC @ 4 VA, 24 VDC @ 167 mA

Communication: Ethernet BACnet IP, IEEE 802.3 10/100 Mbps data rate 10BASE-T, 100BASE-TX (100 m (max) CAT5 cable length)

MS/TP: BACnet MS/TP, ANSI/ASHRAE 135 (ISO 16484-5) 9600, 19200, 38400, 76800 bps data rate EIA-485 (1200 m (max) cable length)

LED Indication:

Power: Green = power OK

Ethernet:

Green = 100 Mbps

Yellow = 10 Mbps

Flash = activity

MS/TP: Flashing green = receive activity

Operating Temperature: 32° to 140°F (0° to 60°C)

Operating Humidity: 10 to 95% (non-condensing)

Dimensions: 4.85"H x 2.74"W x 1.0"D (12.3 x 1.9 x 2.5 cm)

Mounting: DIN Rail (35mm)

Weight: 0.6 lbs (0.27 Kg)

Approvals: CE Mark; CFR 47, Part 15 Class A, RoHS

Warranty: 2 years

product series features

Versatile routing
Flexible communications
IP network support
Easy installation

more information & related documents

Series Description

The BASRT-B BACnet multi-network router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MSTP. This allows the system integrator to mix BACnet network technologies within a single BACnet internetwork. There are two physical communication ports on the BAS Router. One is a 10/100 Mbps Ethernet port and the other an isolated MS/TP port. Configuration is accomplished via a web page. The BACnet router is housed in a plastic case that is powered from a USB port on a laptop computer. There is one MS/TP port and one 10/100 Mbps Ethernet port.

Kele Description

120 VAC TO 24 VAC RECEP WALL MOUNTED POWER ADAPTER

Manufacturer

Contemporary Controls
