RT-CONDUIT-FRD | Siemens Industry | Motor Controls
RT-CONDUIT-FRD NEMA1 KIT,FRAME D1,D2
Brand:Siemens Industry
MPN:RT-CONDUIT-FRD
SKU:RT-CONDUIT-FRD
product specifications
Type
Frame Kit
product series specifications
Input Voltages and Power Ranges (3-phase):
0.25-1 HP 115VAC (-15% +10%) 1-ph
0.25-3 HP 230VAC (-15%- +10%) 1-ph
0.25-20 HP 230VAC (-15%- +10%) 3-ph
0.5-30 HP 460VAC (-15%- +10%) 3-ph
Input Frequency: 50/60 Hz
Output Frequency: 0 – 599 Hz
Max Output Frequency:
Standard model: 599.00 Hz
High speed model: 1500.0 Hz
Overload Capacity:
Normal duty: 120% 60s, 150% 3s
Heavy duty: 150% 60s, 200% 3s
Carrier Frequency: 2-15 KHz (Default 4)
Speed Control Mode:
1:50 (V/f, SVC control for IM, Heavy duty)
1:20 (SVC control for PM, Heavy duty)
Starting Torque:
150% / 3 Hz (V/f, SVC control for IM, Heavy duty)
100% / (1/20 of motor rated frequency) (SVC control for PM, Heavy duty)
Ambient Operating Temperature:
-4º – +122º F (-20º - +50º C)
-4º – +140º F (-20º - +60º C) with derating
Storage Temperature:-4º - +122º F (-20º - +50º C), 140º (60º C) with derating
Relative Humidity:
Operation: Max 90%
Storage/Transportation: Max 95%
Altitude: 1000m/3280ft (>1000m w/ derating)
Vibration: IEC60068-2-6: 2Hz -13.2Hz: 1mm, peak-peak
13.2Hz - 55Hz: 0.7G - 2.0G
55Hz - 512Hz: 2.0G
Enclosures: Class IP20, IP21 Kit Future release
Motor Compat: Induction motors, interior perm. magnet motors, and surface perm. mag motors
Braking: DC Injection Braking
Protections: Over-current, Over-voltage, Over-temperature, Phase loss, Stall prevention
Certifications: UL, cUL, CE, RoHS, REACH, C-Tick
product series features
- Mobile app commissioning in 25 parameters or less.
- Compact form factor is 40% smaller than competitor products.
- Plenum Rated
- Confirmal Coated PCBs for harsh environments
- Safe Torque off (STO) Standard
- High starting torque 200% at 0.54Hz
more information & related documents

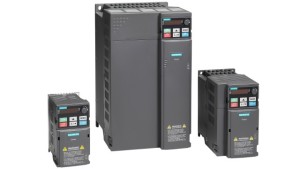

Series Description
The Climatix RT VFD compact drive series have been specifically designed for use in new or existing rooftop unit applications. The Climatix VFDs (RT Series) range in size from .25 horse power to 30 horsepower. Voltage ratings from 115 volts AC (.25HP to 1HP) up to 575 volts AC (see specifications for voltage ranges by model number and horse power). The Climatix series comes in single phase (.25hp to 3HP only) and in three phase for all horse power ratings. Options include EMC Filter Class A (C2-bottom mount), fan kit, line/load reactors and a remote mounting kit for the keypad.
Kele Description
RT-CONDUIT-FRD NEMA1 KIT,FRAME D1,D2
Manufacturer
Siemens Industry
