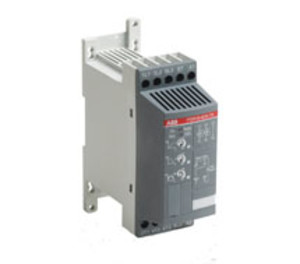

PSR12-600-70 | Kele | Motor Controls
SOFTSTARTER 100/240V 11 FLA
Brand:Kele
MPN:PSR12-600-70
SKU:PSR12-600-70
List Price:
$841.00
Today's Price:
$437.32
Log in for customized pricingproduct specifications
Contact Rating
11 FLA
Type
Starter
Supply Voltage (Nominal)
100 V, 240 V
product series specifications
Control Supply Voltage: 100/240V, 12VA, 24 VDC 5W 210mA
Motor Voltage Rating: 208 to 600 VAC
Current Rating:
PSR3: 3.9A Starting capacity 15.6A for 6s
PSR6: 6.8A Starting capacity 27.2A for 6s
PSR9: 9A Starting capacity 36A for 6s
PSR12: 12A Starting capacity 48A for 6s
PSR16: 16A Starting capacity 64A for 6s
PSR25: 25A Starting capacity 100A for 6s
PSR30: 30A Starting capacity 120A for 6s
PSR37: 37A Starting capacity 148A for 6s
PSR45: 46A Starting capacity 180A for 6s
Horsepower: Based on rated Voltage and FLA
Acceleration Time: 1-10 seconds (Adjustable)
Deceleration Time: 0-20 seconds (Adjustable)
Start/Stop Voltage: 40-70% @ Beginning/End Adjustable
Altitude Limits: 13,123 ft. (4000 m)
Protection Rating: Main circuit IP20 Control Circuit IP20
LED Indication: On/ Ready Green On/ Ready Green Run/ Top of Ramp Green Run/ Top of Ramp Green
Operating Temperature: -13° to 140°F (-25° to 60°C)
Number of Starts/ hr: 10 standard; 20 with Aux. Fan
Approvals: UL Listed File E161428
Warranty: 12 months from installation, maximum 18 months from factory
product series features
- Compact size
- Easy to install and adjust
- DIN rail or screw mounting
- Run signal relay
- 25A and above includes in.Top Of Ramp in. output signal
- Motor ratings up to 600 VAC and 40Hp
- Separate acceleration/ deceleration times
more information & related documents
Series Description
Constant-speed AC motors are used to drive HVAC fans and pumps. During start and stop, both mechanical and electrical stresses are high, causing undesirable load peaks each time the motors are started. An ABB Softstarter eliminates many of these problems. The voltage is smoothly applied to, and removed from, the motor. Both the torque and the current consequently behave in the same way. The result is that mechanical and electrical stresses are significantly lower than with conventional starting methods. The ABB PSR series Compact Softstarters range covers motor currents from 3 to 46A. All sizes include a Run signal relay. The 25A and above are also provided with an output signal for TOR (Top Of Ramp, i.e. full voltage). With standard performance the PSR Softstarters handle ten starts per hour. When an auxiliary cooling fan is added, the starting capacity is increased to 20 starts per hour.
Kele Description
SOFTSTARTER 100/240V 11 FLA
Manufacturer
Kele
Related Documents
ABB Softstarters Guide
