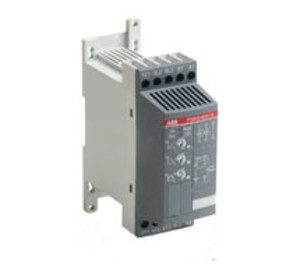

* product series image displayed

PSR12-600-11 | Kele | Motor Controls

SOFTSTARTER 24 VDC 11 FLA

Brand:Kele

MPN:PSR12-600-11

SKU:PSR12-600-11

List Price:

$1,074.00

Today's Price:

$558.48

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Contact Rating

11 FLA

Type

Starter

Supply Voltage (Nominal)

24 VDC

product series specifications

Control Supply Voltage: 100/240V, 12VA, 24 VDC 5W 210mA

Motor Voltage Rating: 208 to 600 VAC

Current Rating:

PSR3: 3.9A Starting capacity 15.6A for 6s

PSR6: 6.8A Starting capacity 27.2A for 6s

PSR9: 9A Starting capacity 36A for 6s

PSR12: 12A Starting capacity 48A for 6s

PSR16: 16A Starting capacity 64A for 6s

PSR25: 25A Starting capacity 100A for 6s

PSR30: 30A Starting capacity 120A for 6s

PSR37: 37A Starting capacity 148A for 6s

PSR45: 46A Starting capacity 180A for 6s

Horsepower: Based on rated Voltage and FLA

Acceleration Time: 1-10 seconds (Adjustable)

Deceleration Time: 0-20 seconds (Adjustable)

Start/Stop Voltage: 40-70% @ Beginning/End Adjustable

Altitude Limits: 13,123 ft. (4000 m)

Protection Rating: Main circuit IP20 Control Circuit IP20

LED Indication: On/ Ready Green On/ Ready Green Run/ Top of Ramp Green Run/ Top of Ramp Green

Operating Temperature: -13° to 140°F (-25° to 60°C)

Number of Starts/ hr: 10 standard; 20 with Aux. Fan

Approvals: UL Listed File E161428

Warranty: 12 months from installation, maximum 18 months from factory

product series features

Compact size
Easy to install and adjust
DIN rail or screw mounting
Run signal relay
25A and above includes in.Top Of Ramp in. output signal
Motor ratings up to 600 VAC and 40Hp
Separate acceleration/ deceleration times

more information & related documents

Series Description

Constant-speed AC motors are used to drive HVAC fans and pumps. During start and stop, both mechanical and electrical stresses are high, causing undesirable load peaks each time the motors are started. An ABB Softstarter eliminates many of these problems. The voltage is smoothly applied to, and removed from, the motor. Both the torque and the current consequently behave in the same way. The result is that mechanical and electrical stresses are significantly lower than with conventional starting methods. The ABB PSR series Compact Softstarters range covers motor currents from 3 to 46A. All sizes include a Run signal relay. The 25A and above are also provided with an output signal for TOR (Top Of Ramp, i.e. full voltage). With standard performance the PSR Softstarters handle ten starts per hour. When an auxiliary cooling fan is added, the starting capacity is increased to 20 starts per hour.

Kele Description

SOFTSTARTER 24 VDC 11 FLA

Manufacturer

Kele
