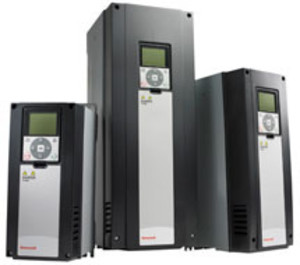

* product series image displayed

HVFD3D3C0400G100C | Honeywell | Motor Controls

HVFD 3G 460 VAC 40 HP NEMA 1

Brand:Honeywell

MPN:HVFD3D3C0400G100C

SKU:HVFD3D3C0400G100C

List Price:

$11,296.00

Today's Price:

$5,873.92

catalog page

Lead time of 14 days. Chat with Kele experts now

product specifications

Phase

Three Phase

Type

Stand Alone

Horsepower

40 hp

Supply Voltage (Nominal)

460 VAC

product series specifications

Supply Voltage: Model specific, 3 phase, 47 to 66 Hz, 380-480 VAC or 200-240 VAC, ±10%

Motor Rating: 0.75 to 250 hp

Frequency Range: 0-320 Hz

Acceleration Time: Adjustable 0.1 - 3000 seconds

Deceleration Time: Adjustable 0.1 - 3000 seconds

Digital Inputs (D.I.): 6 configurable D.I., 24 VDC= on, 0 VDC= off

Analog Input: Two; 0-010v or 4-20 mA voltage, input impedance 200Ω k, current impedance 250Ω

Digital Output: Open collector, 48V/ 50 mA

Analog Output: One programmable output; 0-10 VDC or 4-20 mA @ 500Ω max.

Relay Outputs: Two SPDT

Load Max.: 8A at 24 VDC or 250 VAC, 0.4A at 125 VDC

Load Min.: 10mA at 5 VAC/VDC

Filter Type: 5% DC choke, Class 2 GMC/ RFI

EMC: EN50082 (-1, -2), EN61800-3

Communication Protocol:

RS485 (Terminals): JCI N2, MODBUS, BACnet MS/TP

Ethernet (RJ45): BACnet/ IP, Modbus/TCP

LON (Terminals): LonWorks with optional board

Operating Temperature: 14° to 104℉ (-10° to 40℃)

Operating Humidity: 0 to 95% RH (non-condensing)

Approvals: UL Listed File E190898, CE, RoHS

Warranty: 3 years

product series features

Ideal for low to high hp pumps and fans
Intuitive commissioning
High resolution graphic interface
User manual included in firmware
Simple start-up wizard - pump or fan
Fire mode
2 PID controllers
Real-time clock

more information & related documents

Series Description

SmartVFD HVAC drives are all-purpose and can handle both constant-torque and variable-torque loads. The firmware includes special features that make startup and commissioning of HVAC applications especially easy. Application-specific startup wizards for pumps and fans, combined with the simple and intuitive user interface, make the SmartVFD a pleasure rather than a chore. Integration is a snap with the SmartVFD. It includes both Ethernet and RS485 connections, and will talk BACnet, Modbus, and JCI N2. Take the complexity out of drive selection, installation, and startup - choose SmartVFD for your HVAC projects and start saving time, money, manpower, and energy.

Kele Description

HVFD 3G 460 VAC 40 HP NEMA 1

Manufacturer

Honeywell
