CXD12-BYP0400-4V-40 | Franklin Control Systems | Motor Controls

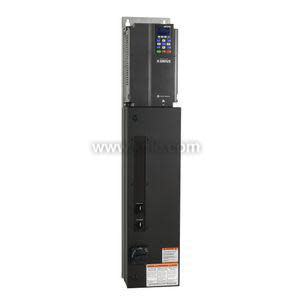

Cerus X-DRIVE Variable Frequency Drive, 460VAC, 30 horse power, w/BYPASS, NEMA 12, 40FLA
Brand:Franklin Control Systems
MPN:CXD12-BYP0400-4V-40
SKU:CXD12-BYP0400-4V-40
List Price:
$12,928.00
Today's Price:
$6,722.56
Log in for customized pricingproduct specifications
Horsepower
30 hp
Type
Bypass
Phase
Single Phase, Three Phase
Supply Voltage (Nominal)
460 VAC
product series specifications
Control Methods: 200/208/230VAC and 460VAC models: V/F control, SVC (Sensorless Vector Control) 575/690VAC models: V/F and SVC
Control Type: PWM (Pulse Width Modulation)
Frequency Setting Resolution: Digital Reference: 0.01 Hz (Below 100 Hz), 0.1 Hz (Over 100 Hz); Analog Reference: Max. output frequency x 0.03/60Hz (±11 bit)
Frequency Accuracy: Digital: 0.01 % of Max. Output Frequency; Analog: 0.1 % of Max. Output Frequency
V/F Control Curve: 12 preset V/F curves and four-point square curve
Speed Control Ratio: 1:12 (5Hz-60Hz) at 60Hz maximum frequency
Maximum Output Frequency: 200/208/230VAC models: 599Hz (55kW and above: 400Hz); 460VAC models: 599Hz (90kW and above: 400Hz); 575/690VAC models: 599Hz
Overload Capacity: Variable Torque: 120% of VFD rated current for 1 minute during every 5 minutes of operation; Constant Torque: 150% of VFD rated current for 1 minute during every 5 minutes of operation and 160% for 3 seconds during every 25 seconds of operation
Starting Torque: Up to 150% or higher at 0.5Hz (Torque Accuracy ±5%)
Torque Limit (Stall level): Variable Torque: Max. 130% torque current; Constant Torque: Max. 160% torque current
Operation Method: Keypad / Terminals / Communication (Built-in Modbus and BACnet)
Frequency Setting: Two Analog Inputs 0- 10VDC/ 4- 20mA and One AI 0-10VDC; Digital: Keypad or Communication
product series features
- Compact vertical design preserves wall space
- includes standard MMS disconnect, Hand-Off-Auto and VFD/Off/Bypass switches
- 3-Contactor (drive-isolation equivalent) configuration
- Harmonic mitigation device on all 575VAC panels
- Easy Installation, Space Saving Design
- Reduced labor and operation costs
- Manual bypass control simplifies system operation
- 3-Contactor bypass configuration standard accross all panels
- Hand-Off-Auto switch standard on all UL Type 3R and 12 panels
- Up to 100 KAIC short-circuit rating available
- Standard UL Type 1, 12 and 3R enclosed packages available
- (UL Type 4X engineered to order)
- UL 508C and cUL rating with all drive models for complete motor protection
- Door-mounted keypad for simple programming and system access
- Optional Ethernet and Modbus TCP/IP communications card
- (BACnet and RS-485 modbus standard)
- Optional panel space heater for rugged environmental conditions (UL Type 3R panels)
more information & related documents
Series Description
Designed for constant and variable torque application, the CERUS® X-Drive is Franklin Electric's all-inclusive drive solution for a variety of markets. The Cerus X-Drive controller is loaded with application-specific firmware with enhanced settings that control and protect motors for the most demanding applications in HVAC and industrial markets. Available in multiple packaged configurations, including bypass and enclosed, these panels are built to last, with every detail and component centered around your requirements.
Kele Description
CERUS X-DRIVE VFD, 460VAC, 30HP, W/BYPASS, NEMA 12, 40FLA
Manufacturer
Franklin Control Systems
Cerus X-Drive Bypass N1 Datasheet
