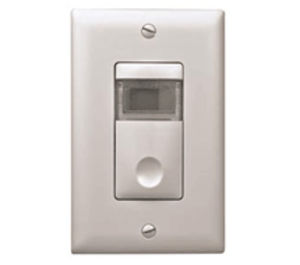

TS-400-W | Watt Stopper Legrand | Lighting Controls
DIGITAL TIME SWITCH 120/277VAC - WHITE
Brand:Watt Stopper Legrand
MPN:TS-400-W
SKU:TS-400-W
List Price:
$227.92
Today's Price:
$118.52
Log in for customized pricingproduct specifications
Mount
Wall
Range
0 - 12 hr
Color
White
Supply Voltage (Nominal)
120 VAC
product series specifications
Supply Voltage: Requires power to operate
TS-400 100/277 VAC/60 Hz, 15 mA
TS-400-24 24 VDC or 24 VAC/60 Hz, 15 mA
Operation: Push Button to start preset count-down timer
On activation the contacts transfer from normal
Relay Output Configuration:
TS-400 SPST-N.O., Referance to AC neutral
TS-40024 SPDT-Isolated low voltage contact
Contact Current:
TS-400 Ballast @120 VAC, 800W
Ballast @277 VAC, 1200W
1/6 HP @125 VAC
TS-400-24 1A @30V AC/DC
Manual Override: Manual button Immediate "ON/OFF"
Special Functions:
Opt. 1 minute "Flash" before OFF
Temporary "Time scrolling" hold ON
Indicators: xx db Audible beep (Can be disabled)
Schedules: Not Specified
Timers:
Count-Down Adjustable to 5 min. to 1 Hour, in 5 min. increments
Count Down Adjustable to 1 hour to 12 Hours, in 15 min. increments
Display: 4 digit Backlit LCD
Operating Temperature: 32° to 104°F (0° to 40°C)
Operating Humidity: 5% to 95% Non-condensing
Wiring Terminations: Terminals 12-14 AWG
Mounting: Vertical, Single gang switch box (not included)
Color: Plastic plate in White
Enclosure Rating: Indoor
Dimensions: 1.79"W x 2.66"H x 1.76"D, (4.6 x x6.7 x 4.5 cm)
Weight: 0.4 lb (0.181kg)
Approvals: UL and cUL listed
Warranty: 5 year
more information & related documents
Series Description
The TS-400 Series WattStopper InteliSwitch is a digital time switch that automatically turns the load off after a preset amount of time. The load can be turned off anytime during the timer's countdown by pushing the on/off button. Designed specifically for building automation systems, BAS, these time switches have four user-adjustable features: Time-Out Delay - The timer can be adjusted to hold the load on for five minutes to 12 hours. This is adjusted by setting the on-off button located on the left side of the unit. Time Scrolling - In situations where the load needs to be held on for a different amount of time than the preset time out period, time scrolling allows the user to manually and temporarily override the time out period. Flash Option - If this option is on, the load will flash once, one minute before the time-out period expires. Set this option with the on-off switch. Beeper Option - If this option is on, the timer will beep every five seconds during the last minute of the time-out period. Set this option with the on-off button.
Kele Description
DIGITAL TIME SWITCH 120/277VAC - WHITE
Manufacturer
Watt Stopper Legrand
